Troubleshooting (A/T): Notes

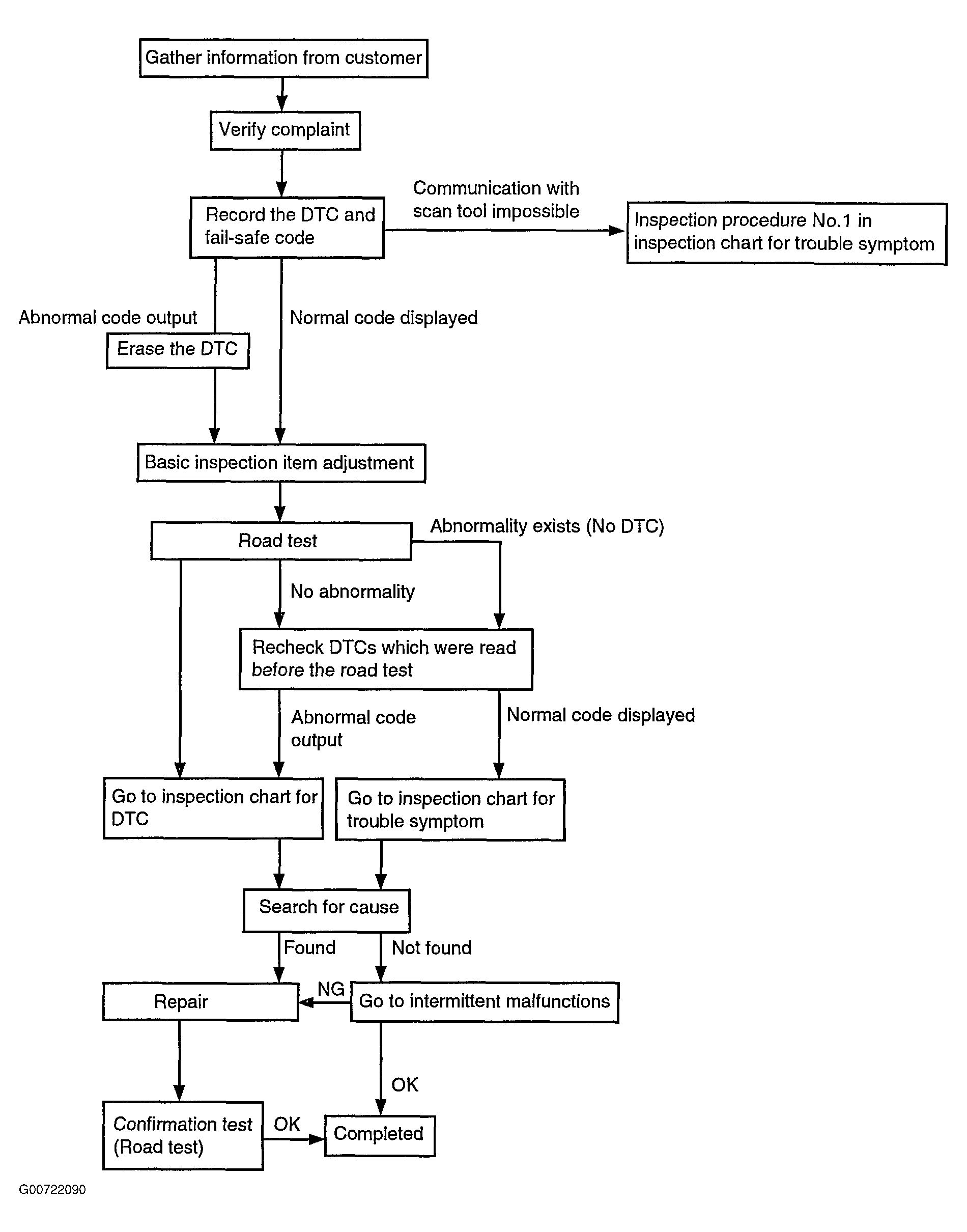

Fig 1: Troubleshooting Flow Chart

G00722090

Courtesy of HYUNDAI MOTOR CO.
