Operating Element And Their Functions

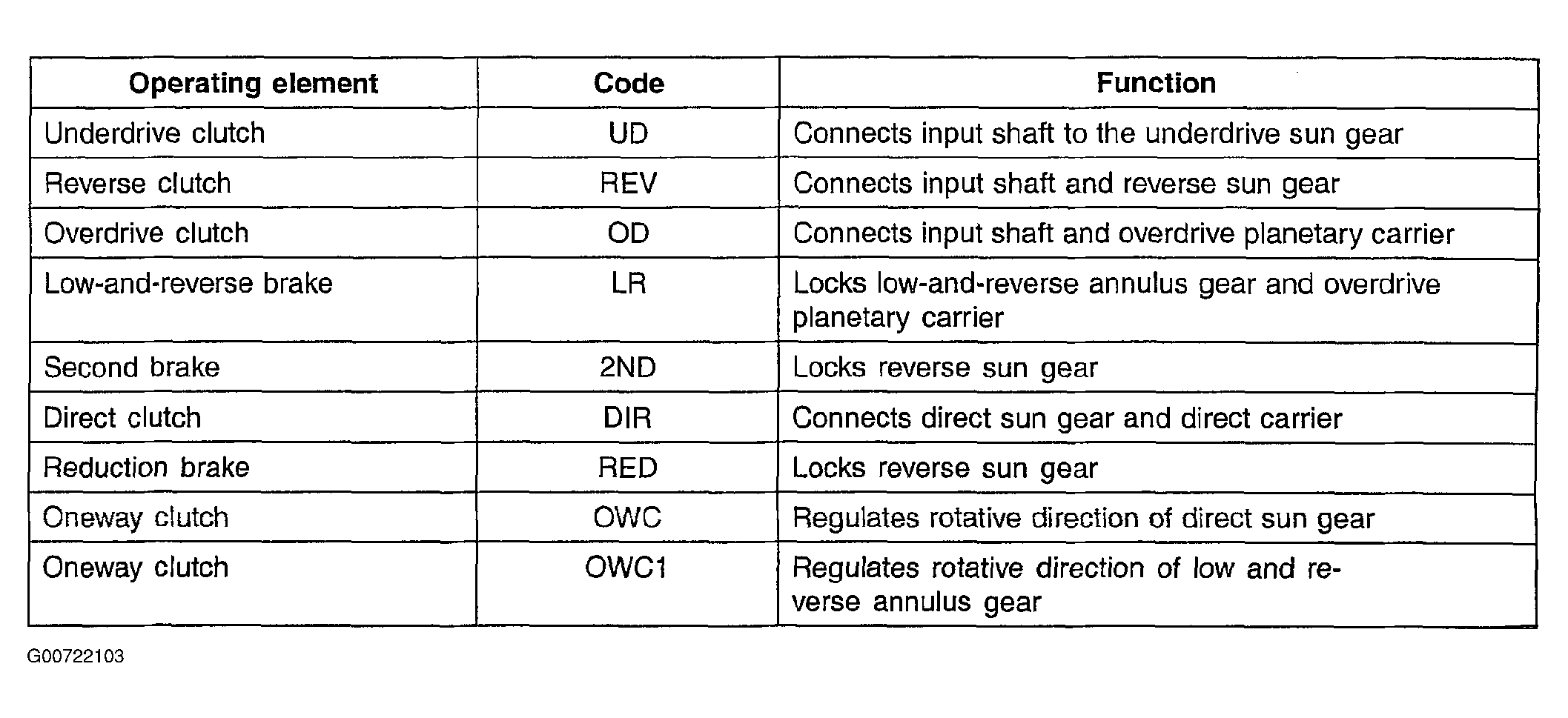

Fig 1: Operating Element And Their Functions

G00722103

Courtesy of HYUNDAI MOTOR CO.
