Fuel Injector: Components

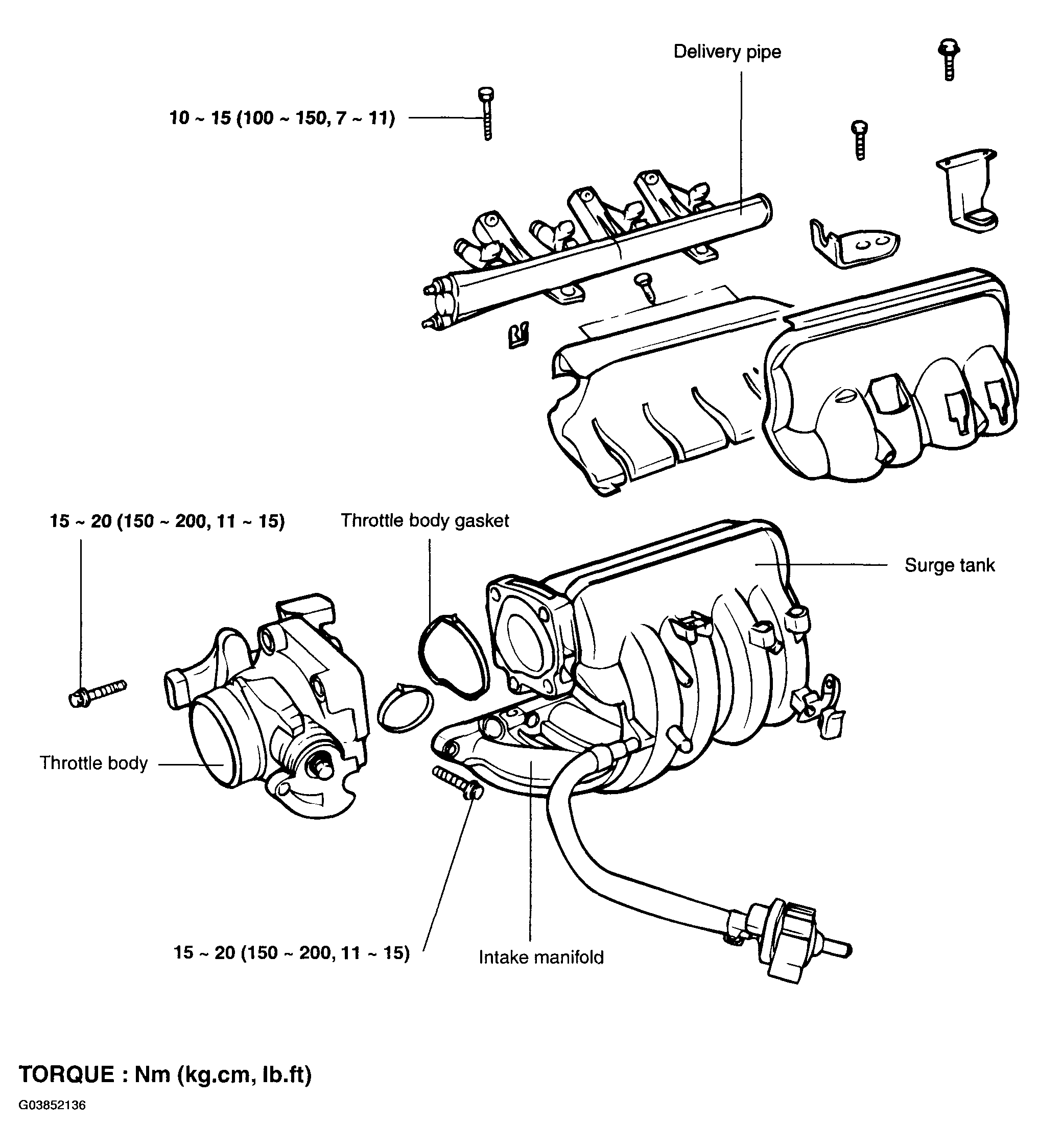

Fig 1: Fuel Delivery System Replacement Components And Torque Specs.

G03852136

Courtesy of HYUNDAI MOTOR CO.
