Harness Inspection Procedures

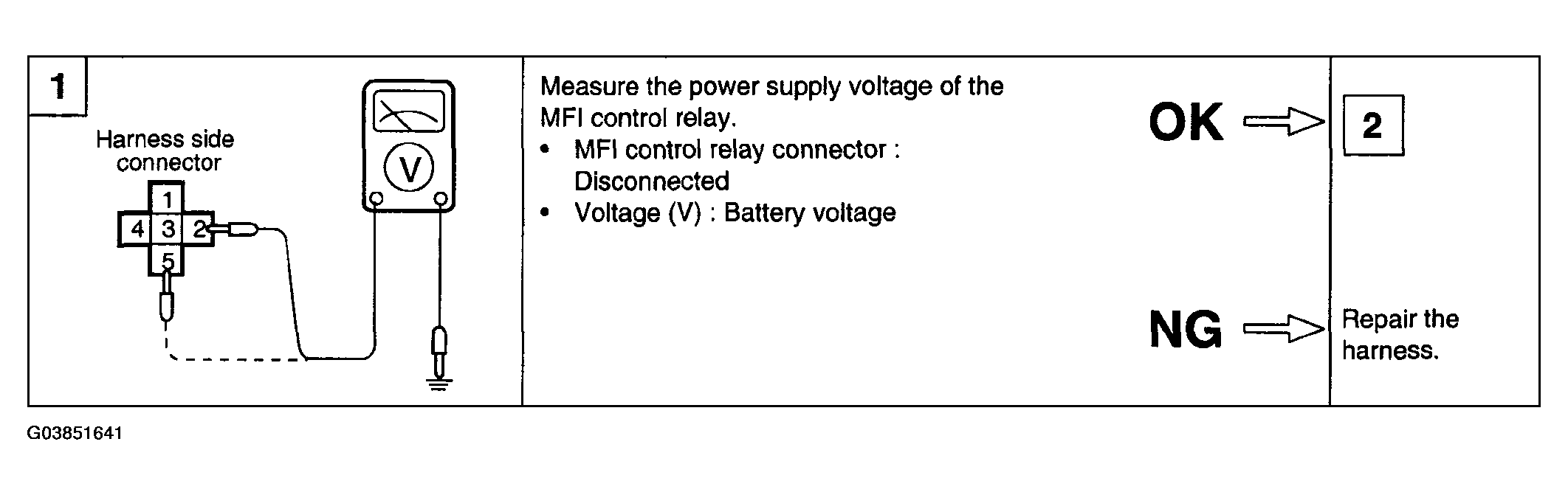

Fig 1: Engine Control Module (ECM) Control Relay Harness Inspection Procedures Chart (1 Of 2)
G03851641Courtesy of HYUNDAI MOTOR CO.

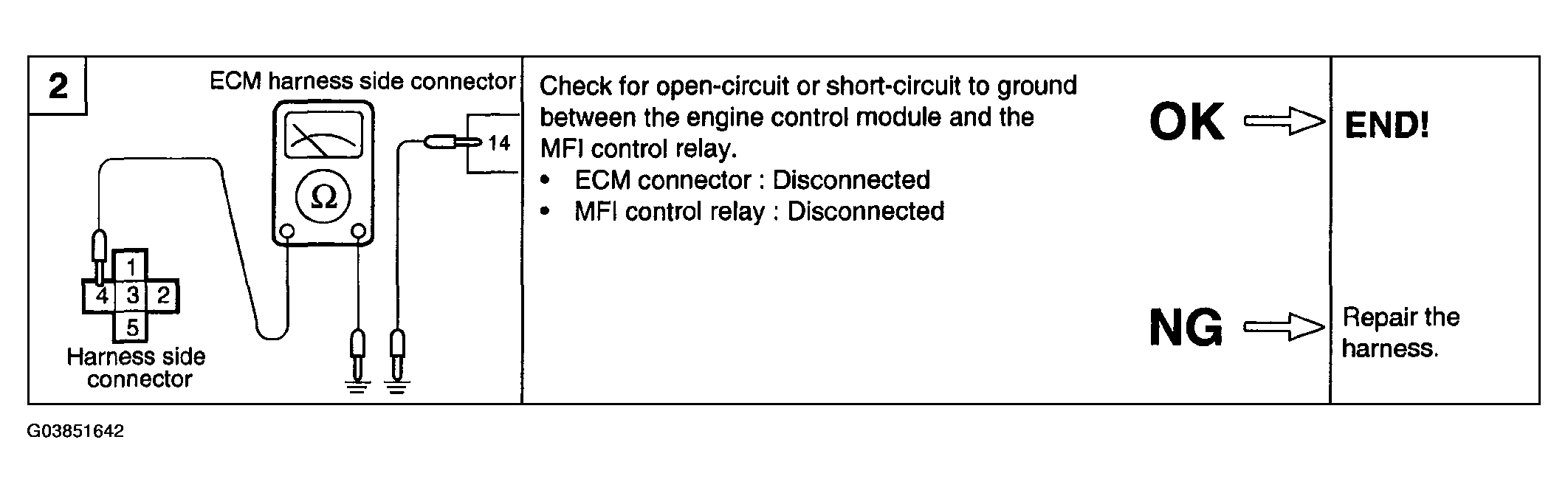

Fig 2: Engine Control Module (ECM) Control Relay Harness Inspection Procedures Chart (2 Of 2)
G03851642Courtesy of HYUNDAI MOTOR CO.
