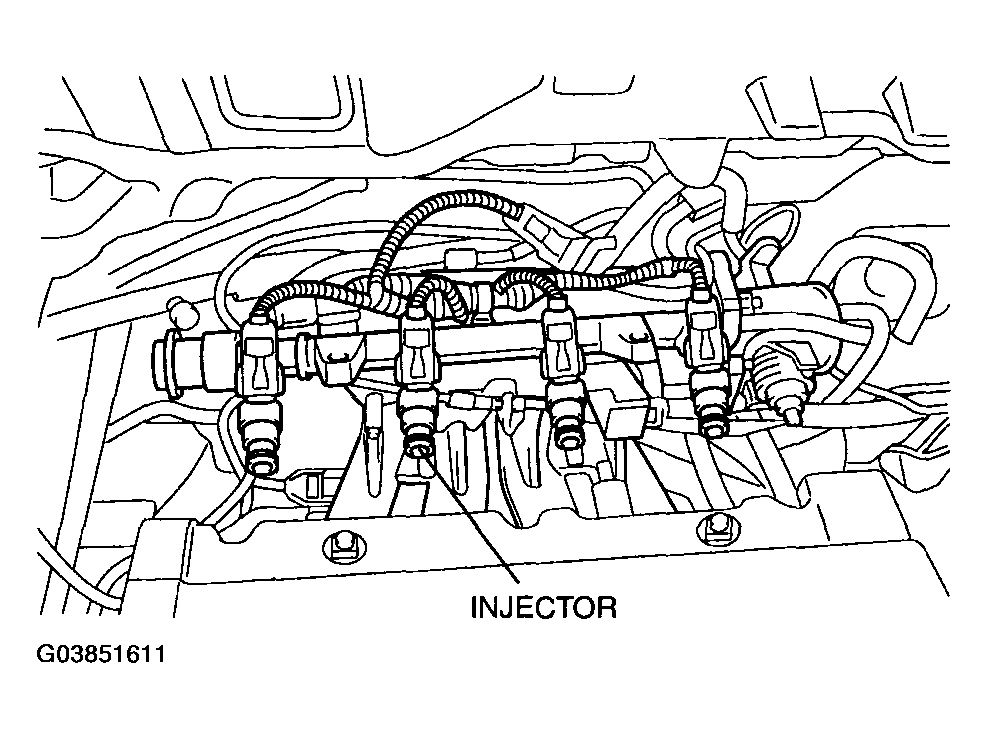

Gasoline Engine Control System: Injector: Notes
The injectors inject fuel according to a signals from the ECM. The volume of fuel injected by the injector is determined by the time during which the solenoid valve is energized.
Courtesy of HYUNDAI MOTOR CO.
