Hyundai
>>
2004
>>
Accent GT, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System
>>
General
>>
Basic Troubleshooting
>>
Troubleshooting Guide Chart
Troubleshooting Guide Chart

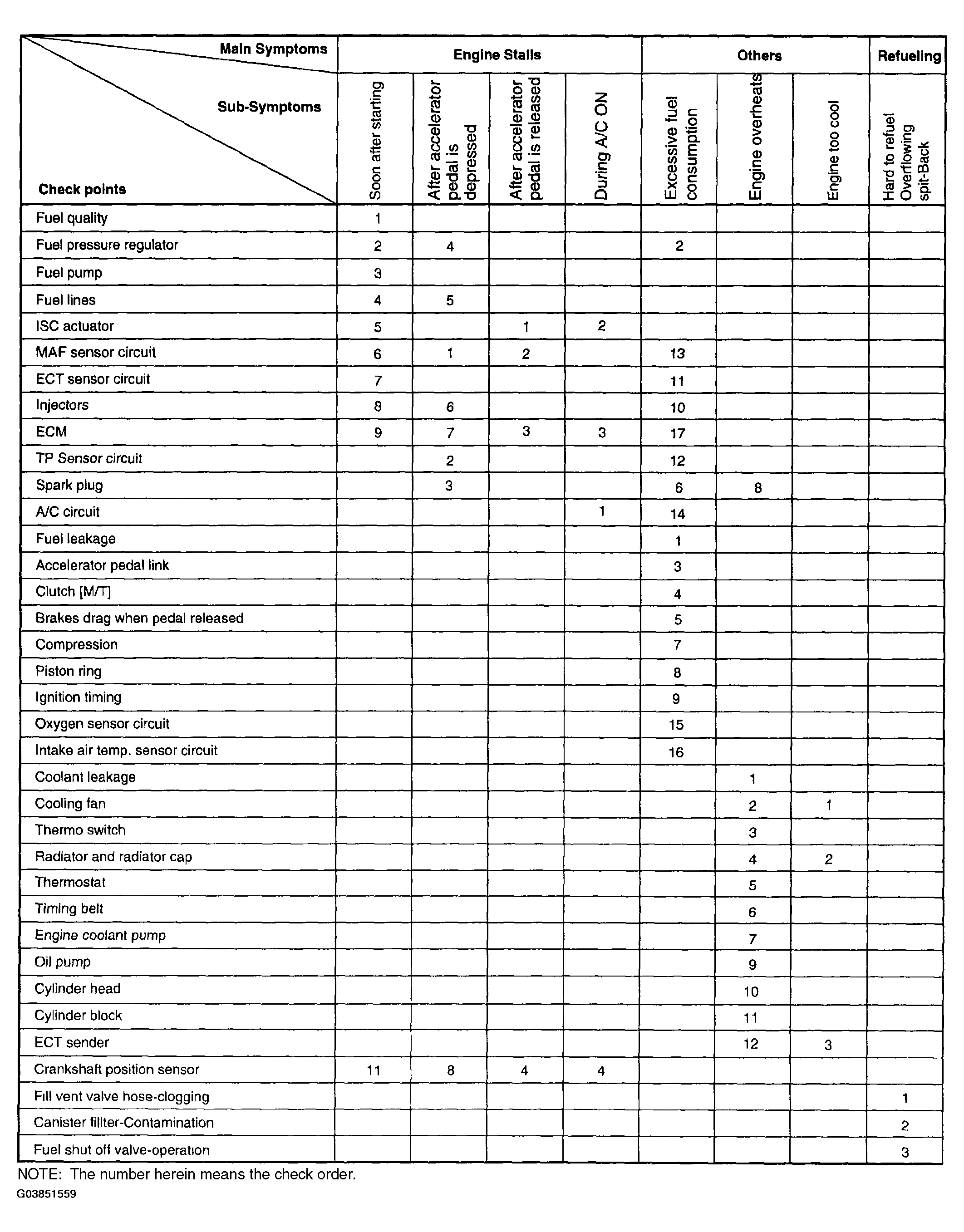

Fig 1: Troubleshooting Guide Chart (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

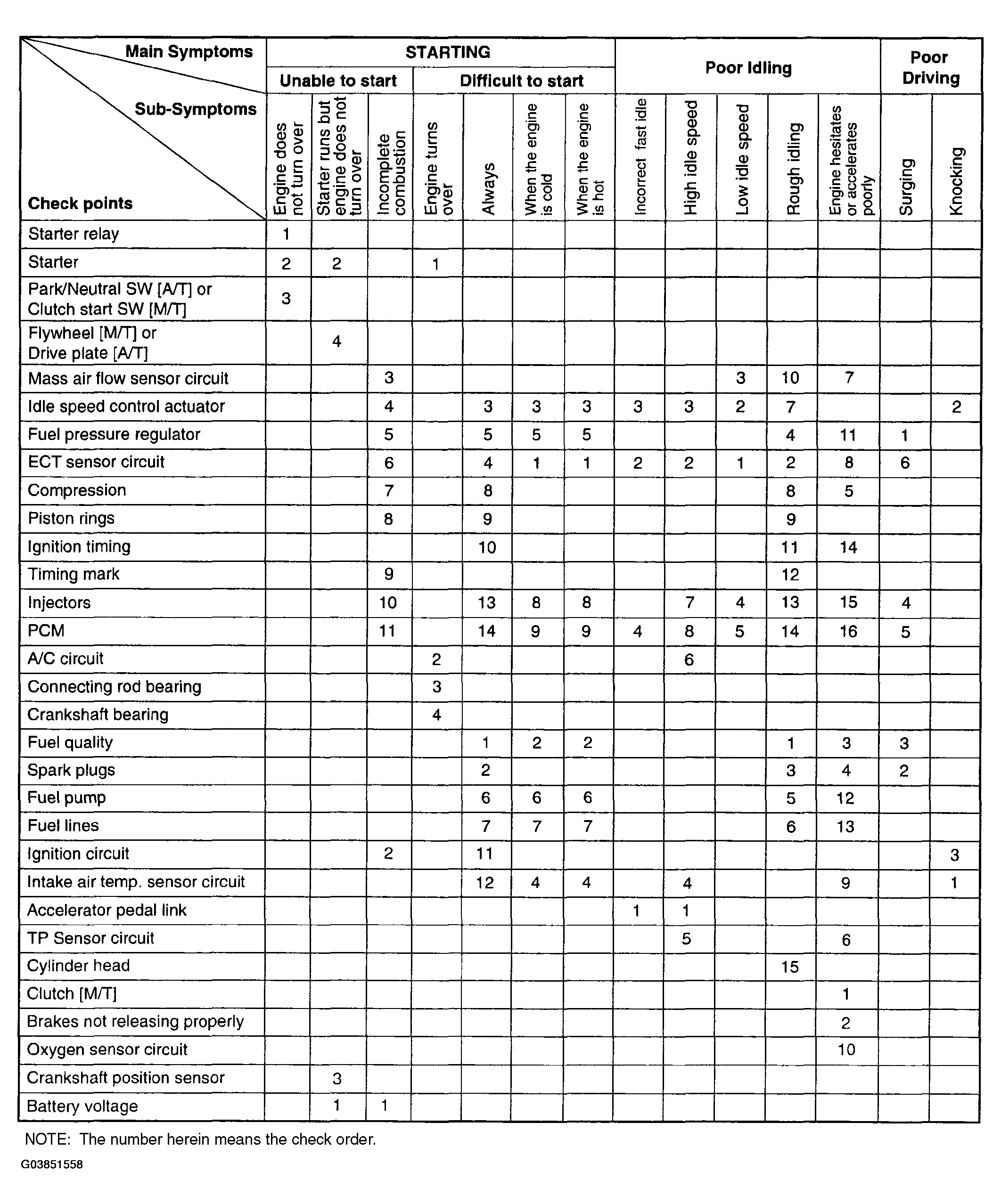

Fig 2: Troubleshooting Guide Chart (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
