Fuel Injector: Removal

  1. Release residual pressure from the fuel line to prevent fuel from spilling.
    CAUTION: Cover the hose connection with rags to prevent splashing of fuel that may be caused by residual pressure in the fuel line.
  2. Remove the delivery pipe with the fuel injectors.
    CAUTION:
    1. Be careful not to drop any injectors when removing the delivery pipe.
    2. Be aware that fuel may flow out when removing the injector.

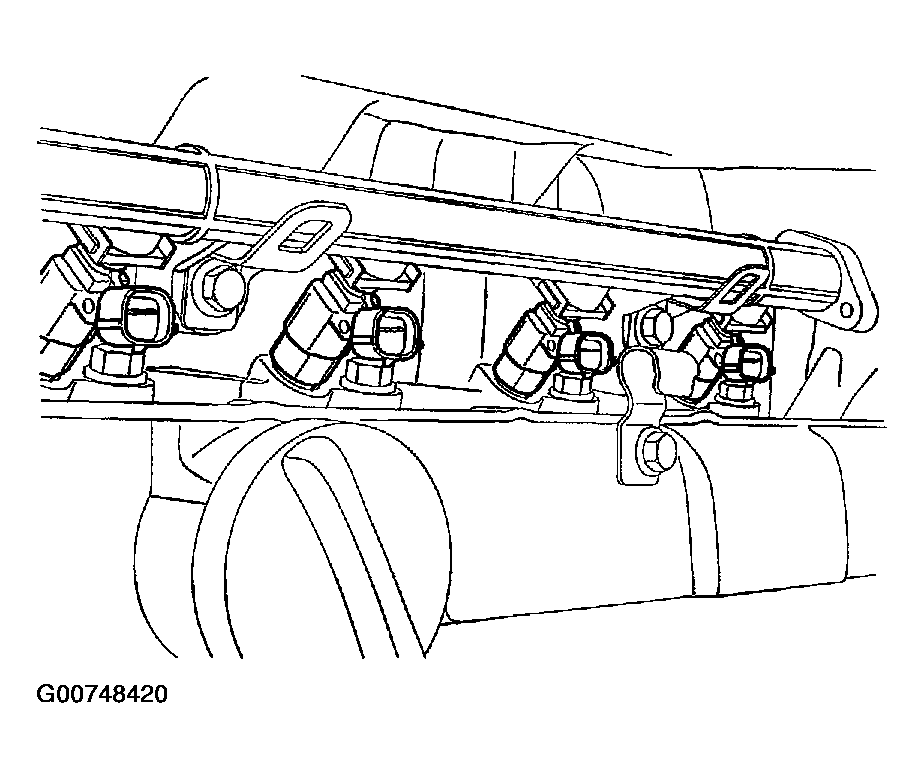

    Fig 1: Removing Fuel Injectors
    G00748420Courtesy of HYUNDAI MOTOR CO.
