Engine Control System
>>
Components and Components Location
>>
Component Location
Component Location

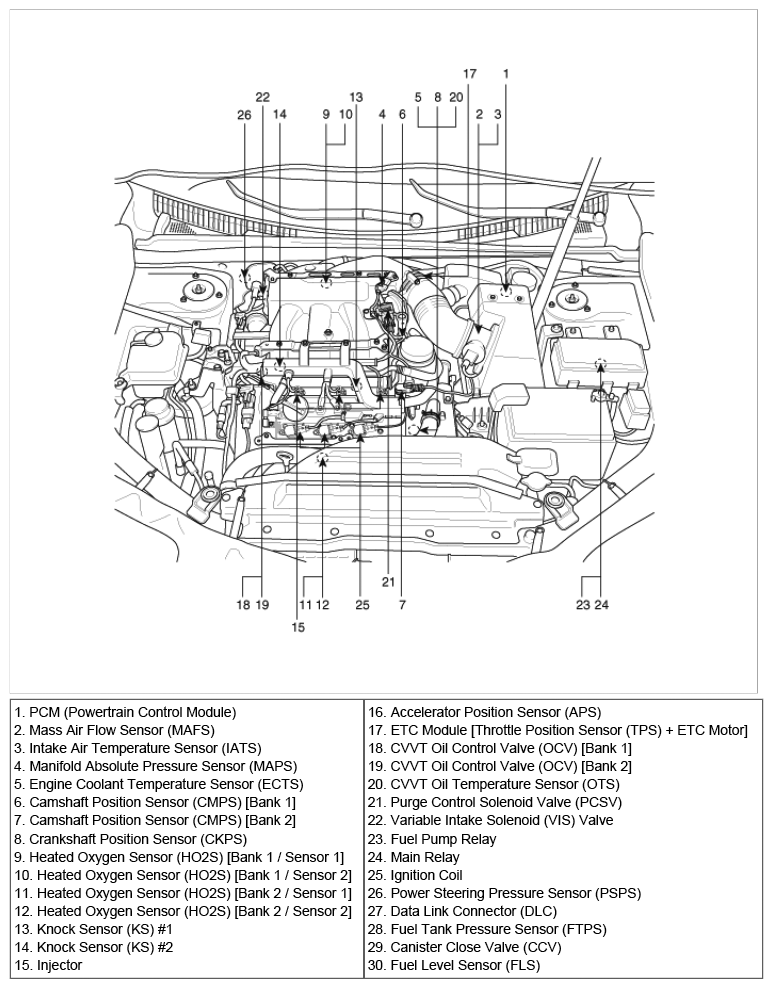

Fig 1: Identifying Engine Control System Components And Components Location (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

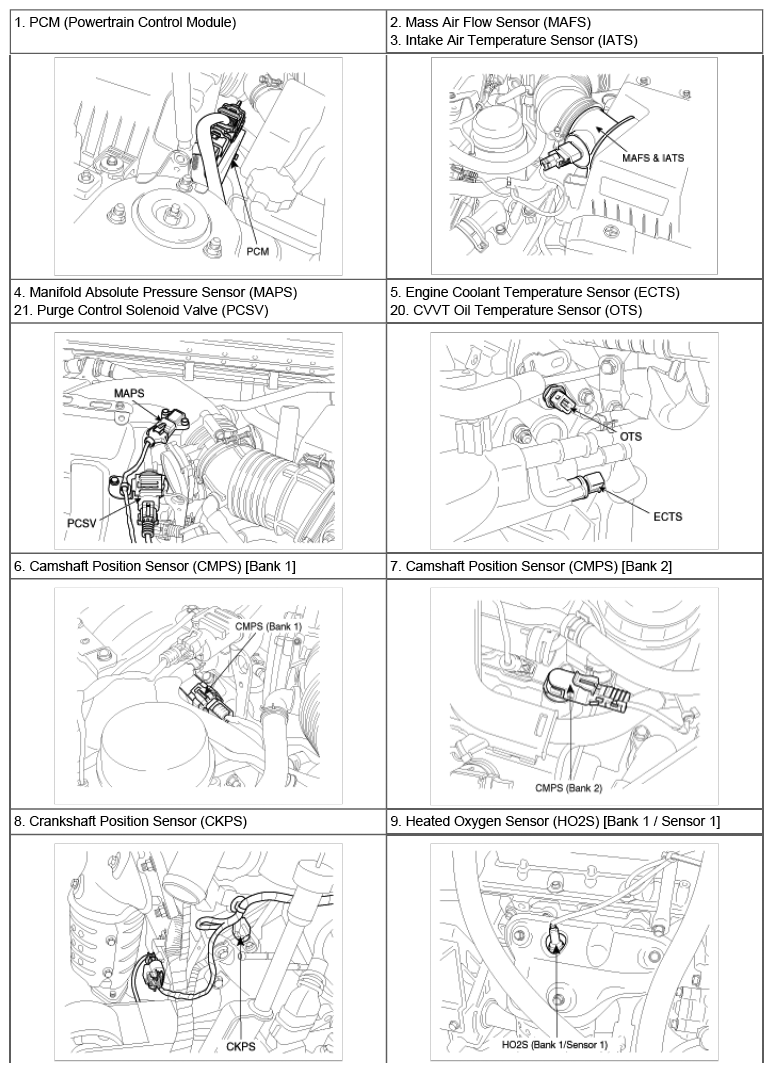

Fig 2: Identifying Engine Control System Components And Components Location (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

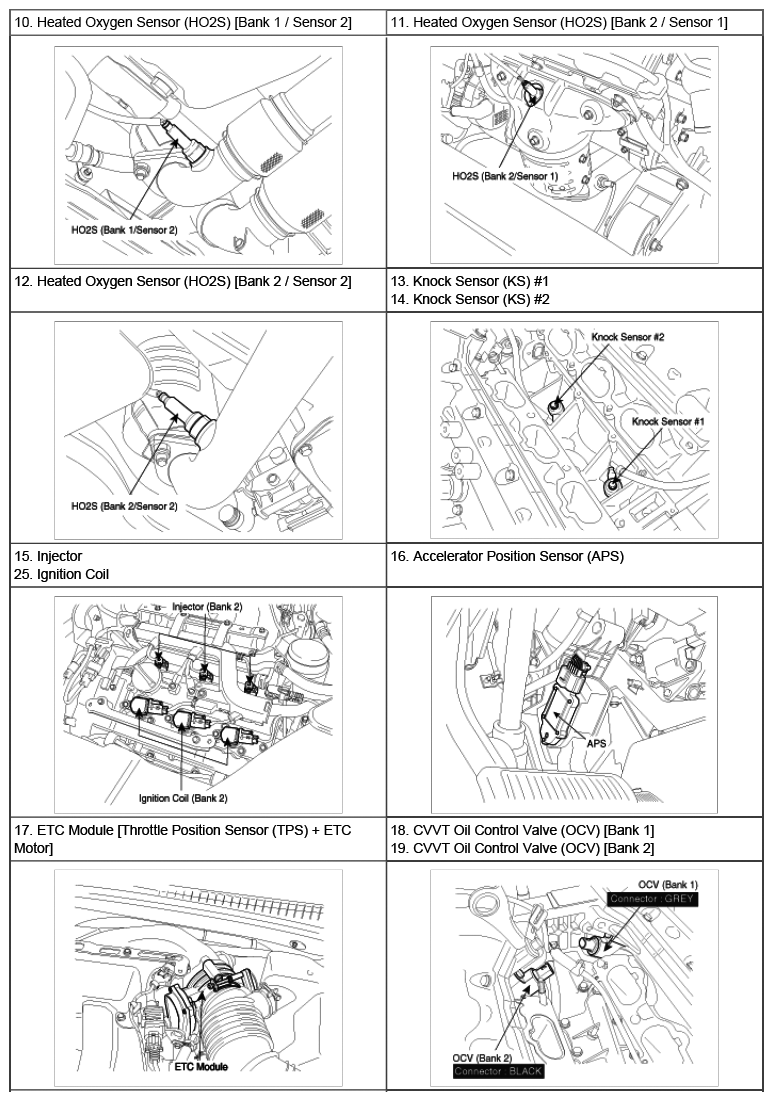

Fig 3: Identifying Engine Control System Components And Components Location (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

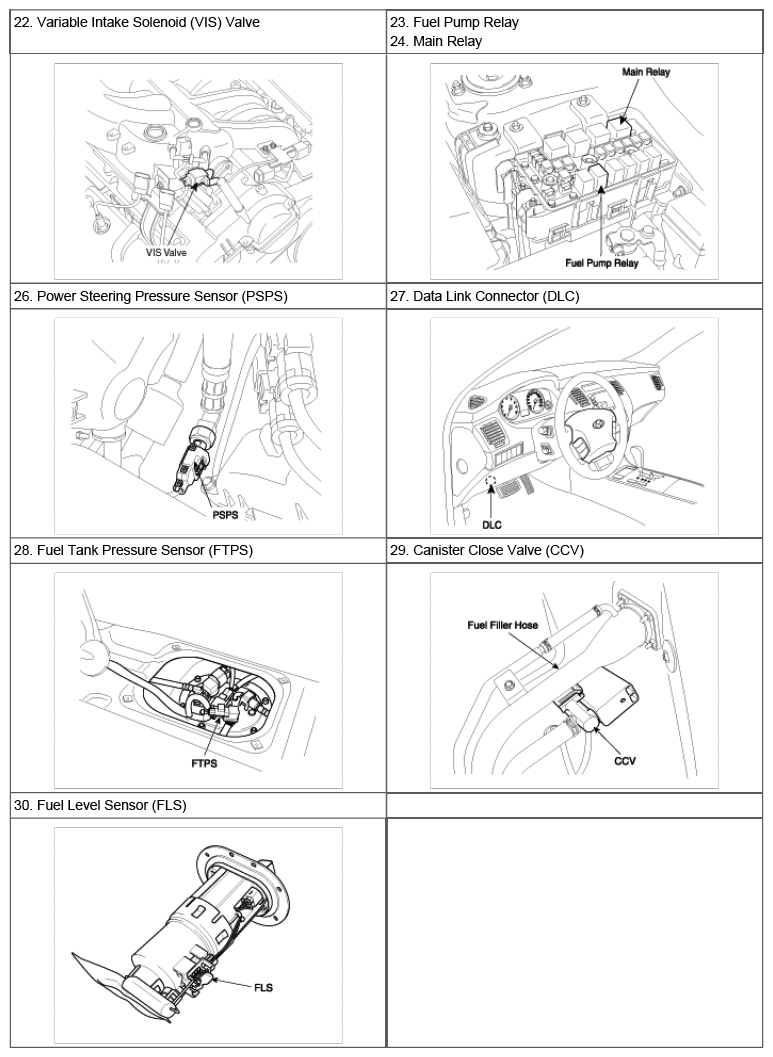

Fig 4: Identifying Engine Control System Components And Components Location (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
