Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

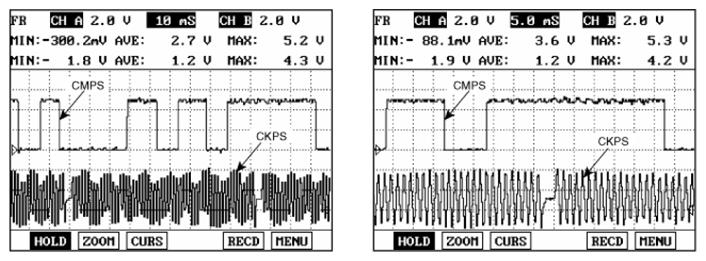

Fig 1: Crankshaft Position Sensor Waveform Graph

G06805065

Courtesy of HYUNDAI MOTOR CO.
