Circuit Diagram

[A/T]

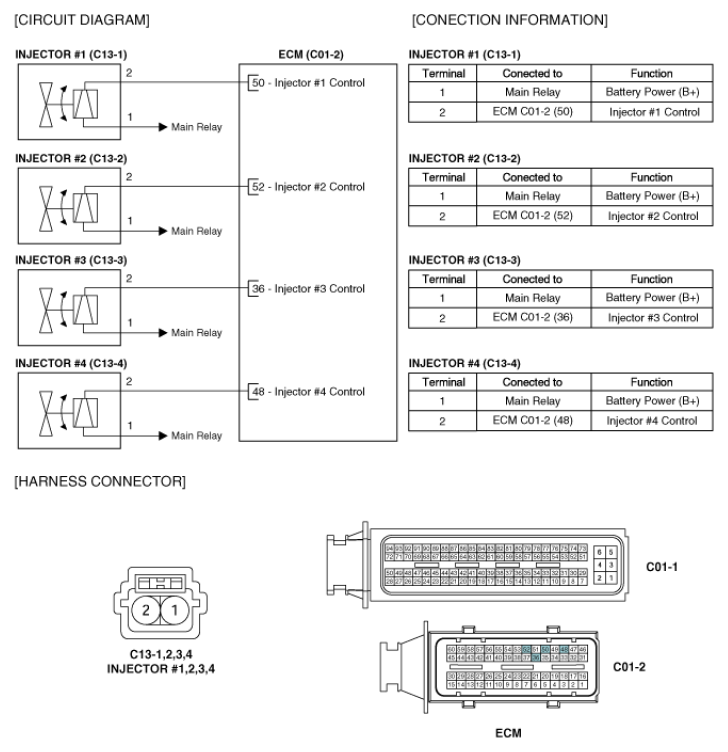

Fig 1: Injector Circuit Diagram - A/T

G06879461

Courtesy of HYUNDAI MOTOR CO.

[M/T]

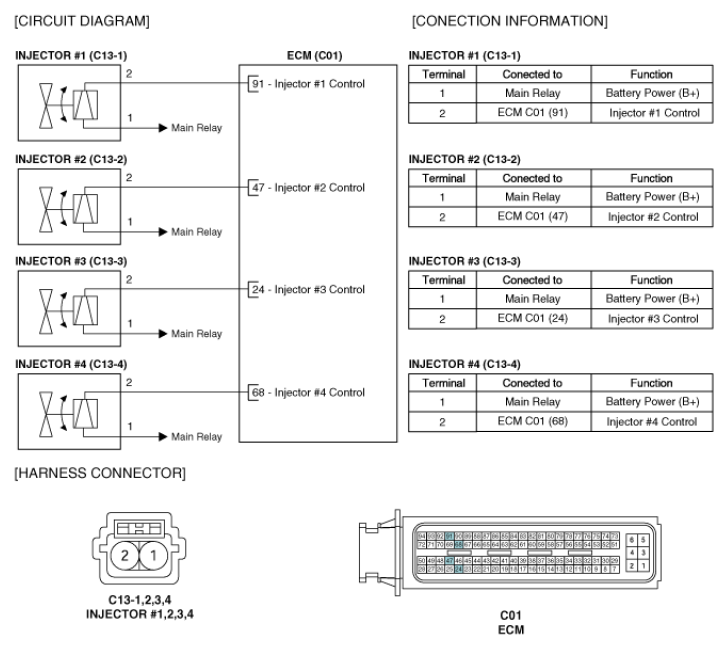

Fig 2: Injector Circuit Diagram - M/T

G06879462

Courtesy of HYUNDAI MOTOR CO.
