Circuit Diagram

[A/T]

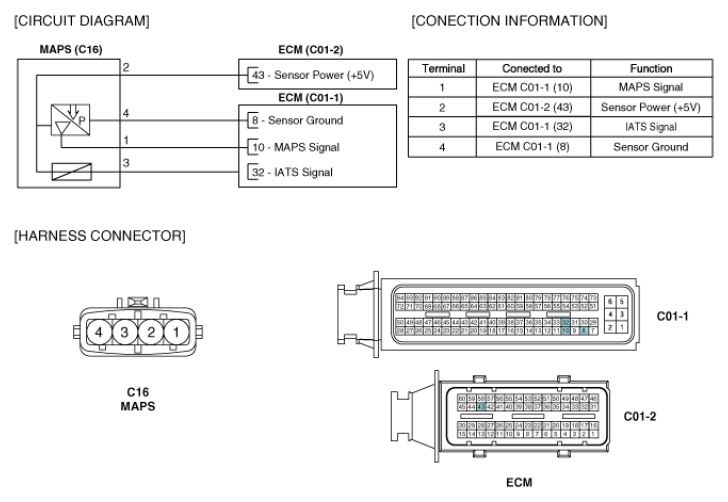

Fig 1: Intake Air Temperature Sensor Circuit Diagram - A/T

G06879433

Courtesy of HYUNDAI MOTOR CO.

[M/T]

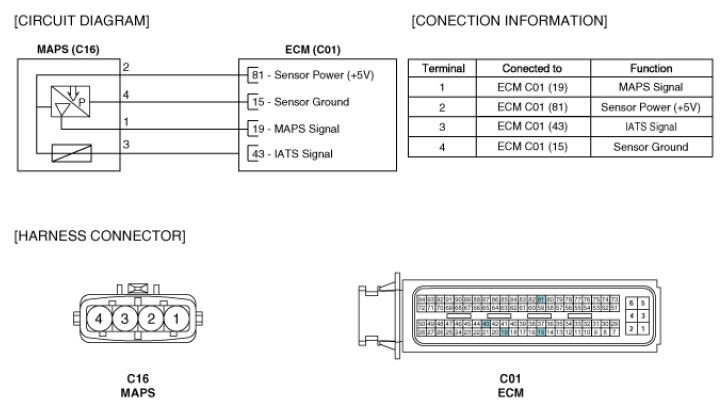

Fig 2: Intake Air Temperature Sensor Circuit Diagram - M/T

G06879434

Courtesy of HYUNDAI MOTOR CO.
