Circuit Diagram

[A/T]

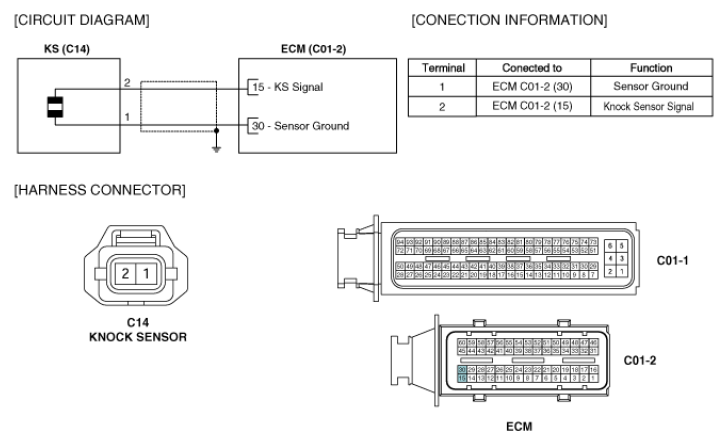

Fig 1: Knock Sensor Circuit Diagram - A/T

G06879450

Courtesy of HYUNDAI MOTOR CO.

[M/T]

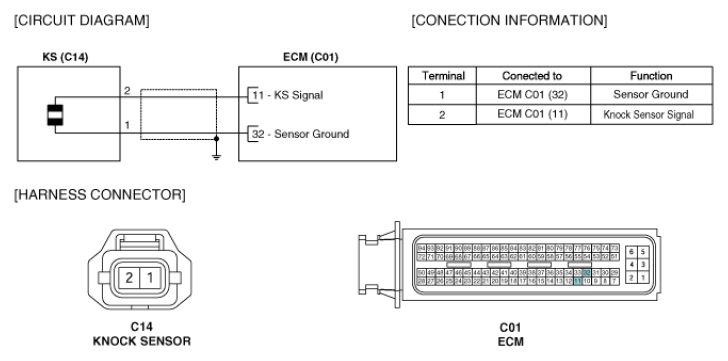

Fig 2: Knock Sensor Circuit Diagram - M/T

G06879451

Courtesy of HYUNDAI MOTOR CO.
