Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose (Refer to "INTAKE AND EXHAUST SYSTEM " in EM group).
  3. Disconnect the ETC module connector (A).

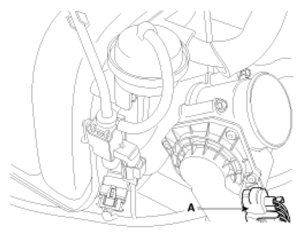

    Fig 1: Identifying ETC Module Connector
    G07264049Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the coolant hoses (B).
  5. Remove the installation bolts (C), and then remove the ETC module from the engine.

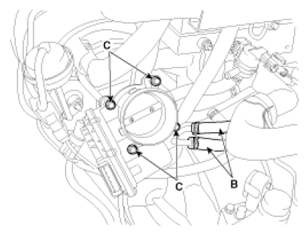

Fig 2: Identifying Coolant Hoses
G07264050Courtesy of HYUNDAI MOTOR CO.
