Repair Procedures: Removal

NOTE: In the case of the vehicle equipped with immobilizer or button engine start system, perform "Key Teaching" procedure together (Refer to BUTTON ENGINE START SYSTEM or "BUTTON ENGINE START SYSTEM " in BE group).
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the ECM Connector (A).

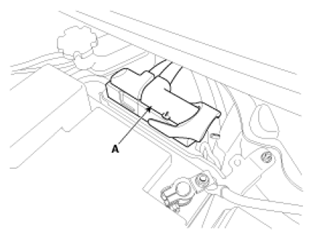

    Fig 1: Identifying ECM Connector
    G07264039Courtesy of HYUNDAI MOTOR CO.
  3. Remove the battery (Refer to "CHARGING SYSTEM " in EE group).
  4. Remove the mounting bolts (A) and a nut (B), and then remove the ECM (C).

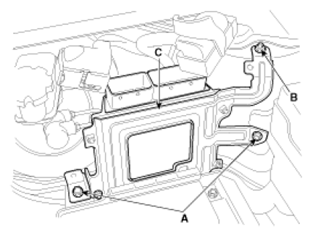

    Fig 2: Identifying Mounting Bolts
    G07264040Courtesy of HYUNDAI MOTOR CO.
