Automatic Transaxle Control System: Specifications: Overview
Type: Negative Thermal Coefficient Type

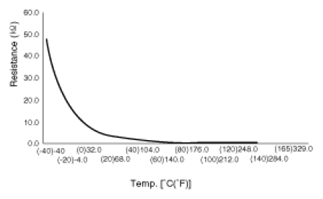

RESISTANCE SPECIFICATION
| Temp.[(°C)°F] |
Resistance (kΩ) |
| (-40)-40 |
48.1 |
| (-20)-4.0 |
15.6 |
| (0)32.0 |
5.88 |
| (20)68.0 |
2.51 |
| (40)104.0 |
1.19 |
| (60)140.0 |
0.61 |
| (80)176.0 |
0.32 |
| (100)212.0 |
0.18 |
| (120)248.0 |
0.10 |
| (140)284.0 |
0.06 |
| (150)302.0 |
0.05 |
Courtesy of HYUNDAI MOTOR CO.
