Components Location

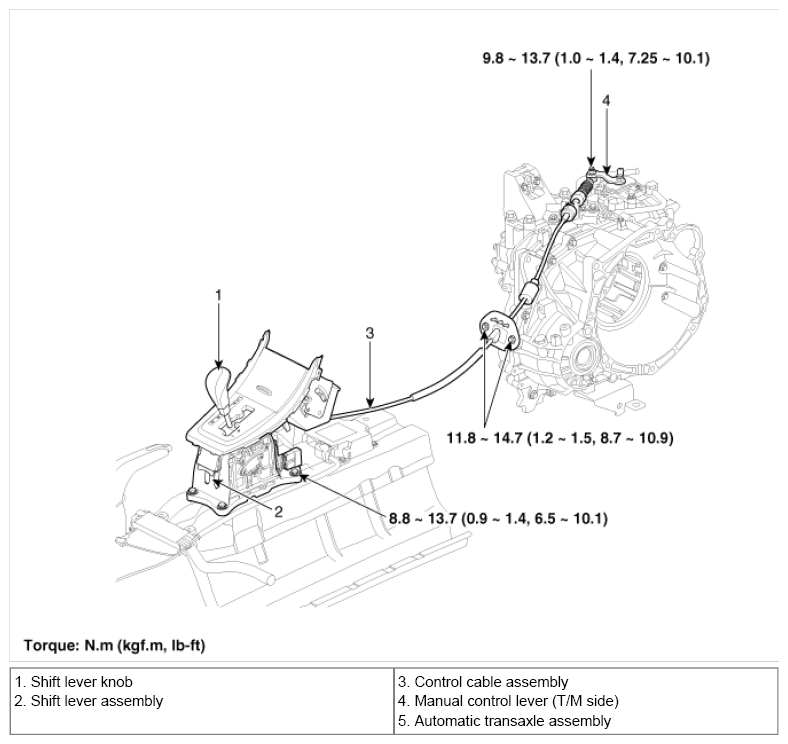

Fig 1: Shift Lever Replacement Components With Torque Specifications
G07264338Courtesy of HYUNDAI MOTOR CO.
