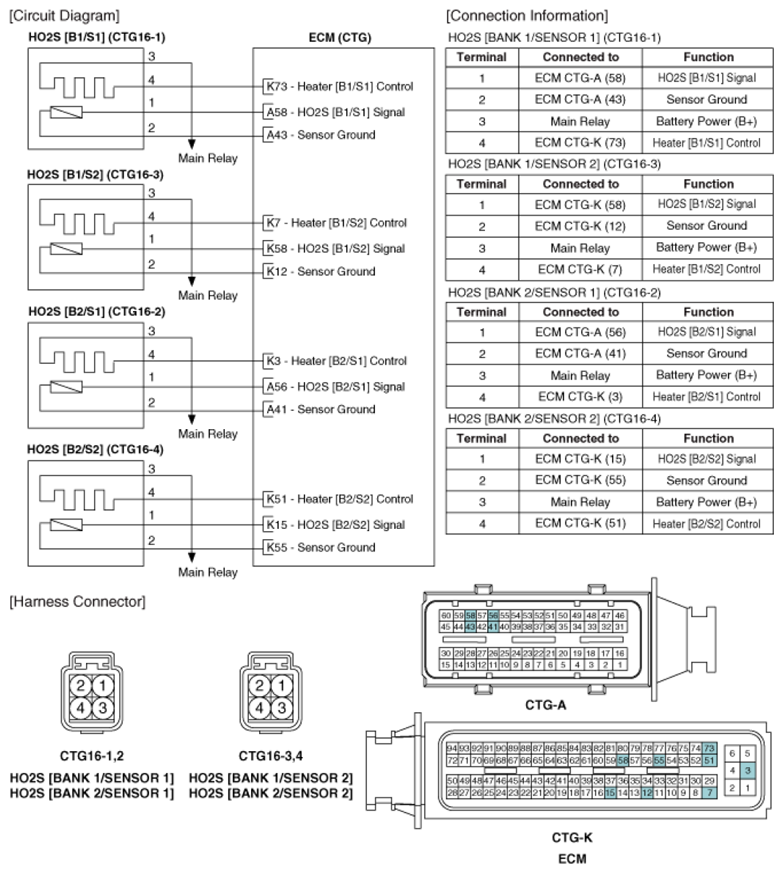

Home >> Hyundai >> 2011 >> Equus Signature >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System Components >> Heated Oxygen Sensor (HO2S) >> Schematic Diagrams >> Circuit Diagram
