Ignition coil

Disconnect the ignition coil connectors (A).

Fig 1: Identifying Ignition Coil Connectors
Courtesy of HYUNDAI MOTOR CO.

Fig 2: Identifying Ignition Coil Connectors
Courtesy of HYUNDAI MOTOR CO.

NOTE: When disconnecting the ignition coil connector, pull out the locking pin (A) and then pull out the connector while pressing the clip (B).

Fig 3: Pulling Locking Pin And Clip
Courtesy of HYUNDAI MOTOR CO.
Remove the ignition coils (A).
Tightening torque:

9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)

NOTE: Bank #1 consist of cylinders #1, #3, #5, & #7

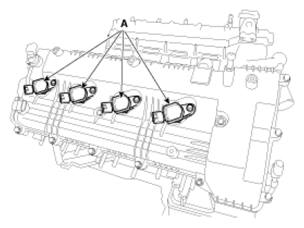

Fig 4: Identifying Ignition Coils
Courtesy of HYUNDAI MOTOR CO.

NOTE: Bank #2 consist of cylinders #2, #4, #6, & #8

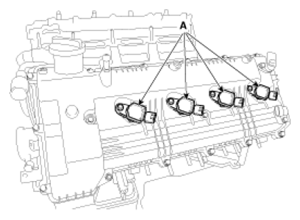

Fig 5: Identifying Ignition Coils
Courtesy of HYUNDAI MOTOR CO.
Installation is reverse order of removal.
