Home >> Hyundai >> 2011 >> Tucson GL, Standard >> Repair and Diagnosis >> Electrical >> Starter >> Button Engine Start System >> PDM (Power Distribution Module) >> Components and Components Location >> Component >> Notes

Components and Components Location: Component: Notes

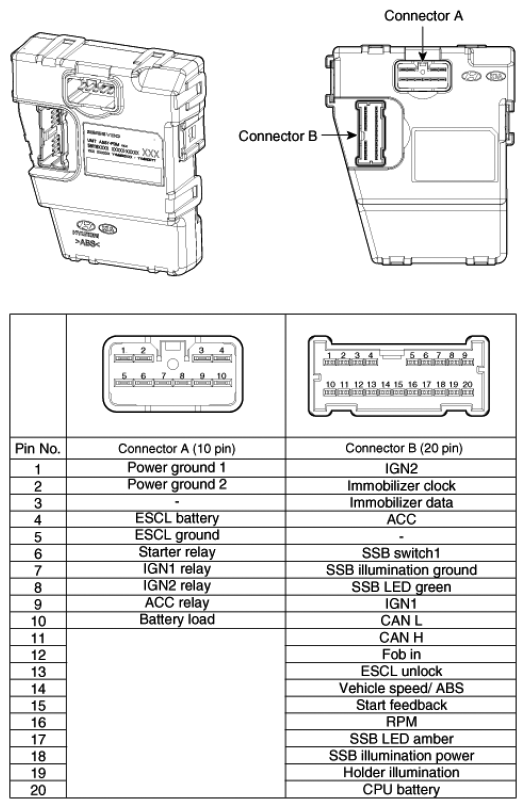

Fig 1: Identifying Power Distribution Module With Connector Terminals Description Chart

G06873849

Courtesy of HYUNDAI MOTOR CO.
