Home >> Hyundai >> 2011 >> Tucson GL, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Variable Charge Motion Actuator (VCMA) >> Components and Components Location >> Components

Components and Components Location: Components

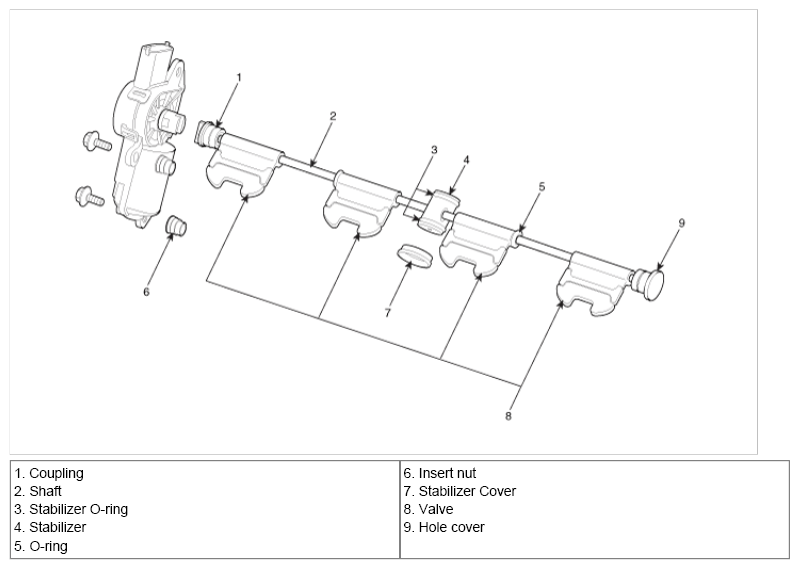

Fig 1: Identifying Variable Charge Motion Actuator Components

G06872253

Courtesy of HYUNDAI MOTOR CO.
