Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the floor mat in the trunk.
  3. Remove the service cover (A).

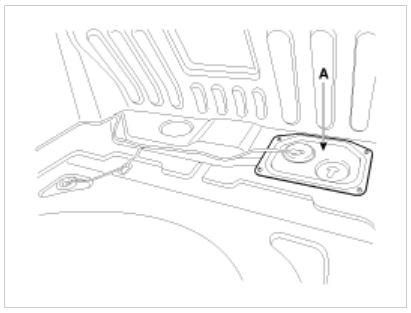

    Fig 1: Identifying Service Cover
    G08809717Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the fuel tank pressure sensor connector (A).
  5. Remove the fuel tank pressure sensor (A) after releasing the hooks vertically.

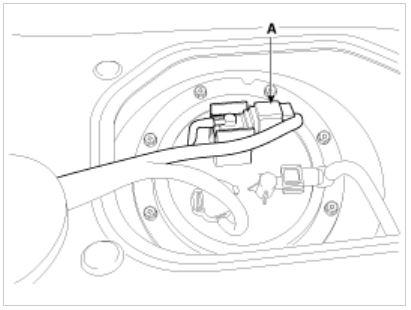

    Fig 2: Identifying Fuel Tank Pressure Sensor
    G08809718Courtesy of HYUNDAI MOTOR AMERICA
