Engine Control System
>>
Components and Components Location
>>
Components Location
Components Location

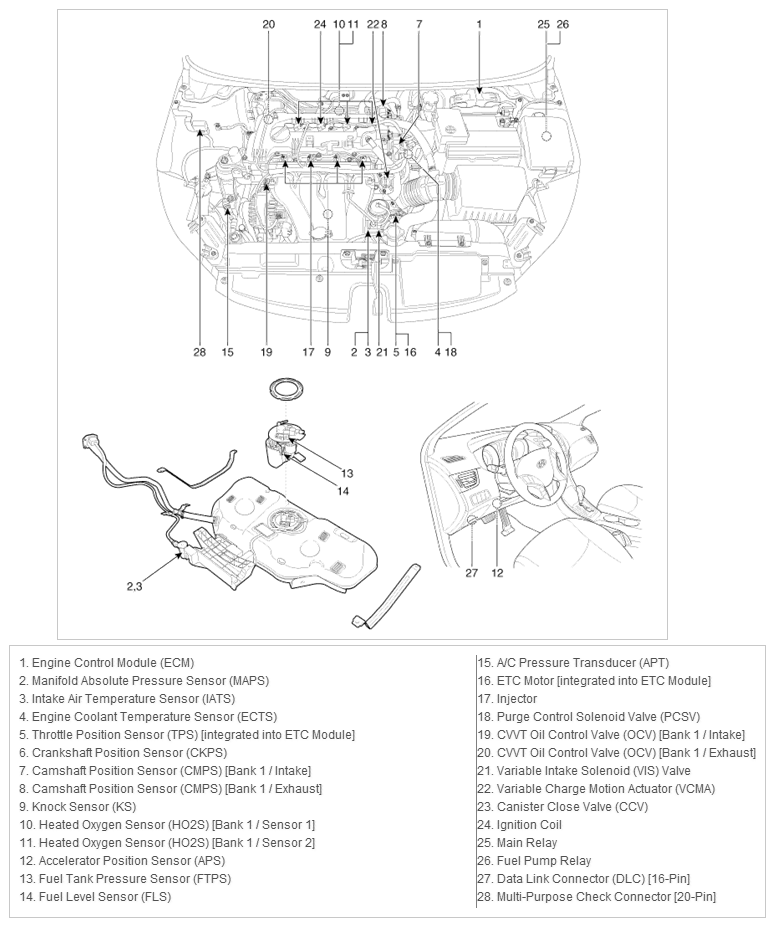

Fig 1: Engine Control System Components And Locations (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

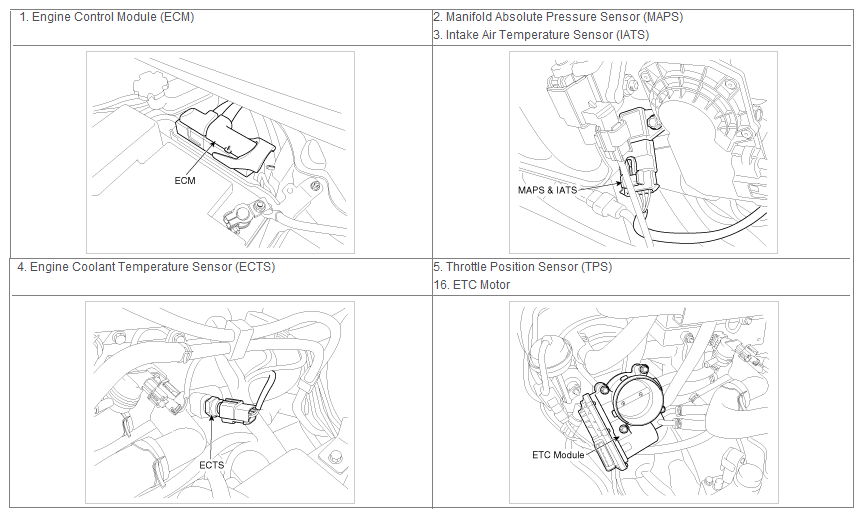

Fig 2: Engine Control System Components And Locations (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

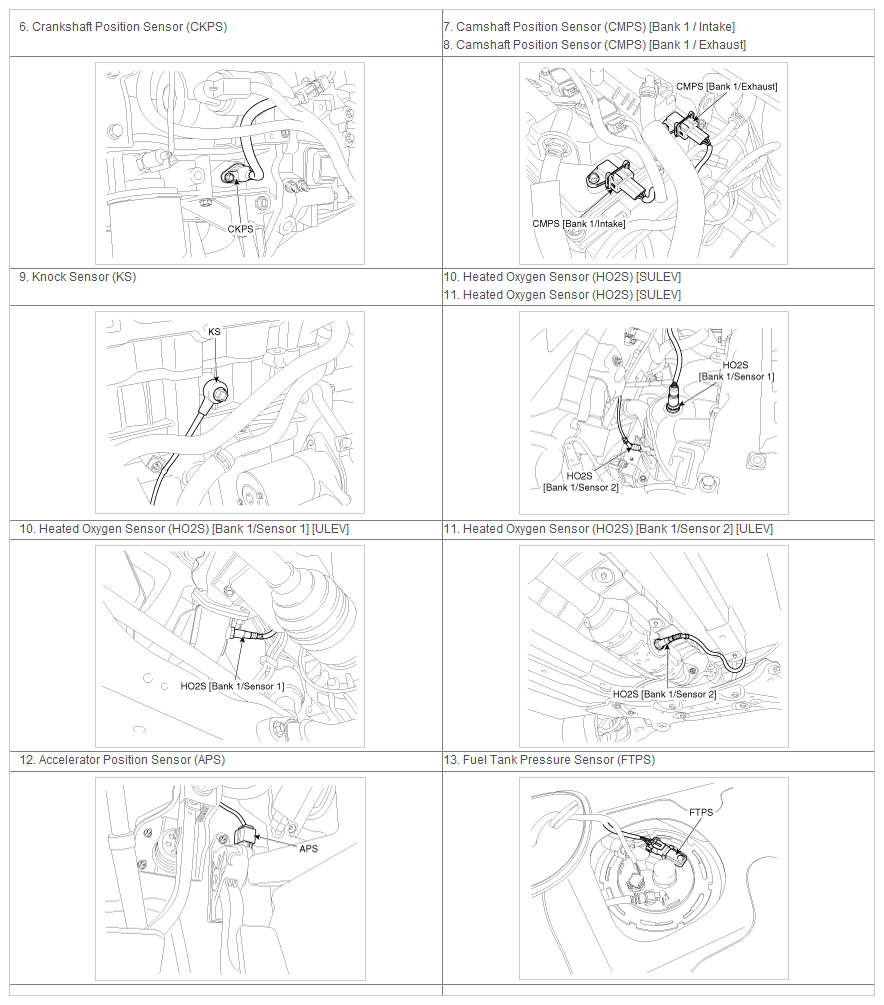

Fig 3: Engine Control System Components And Locations (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

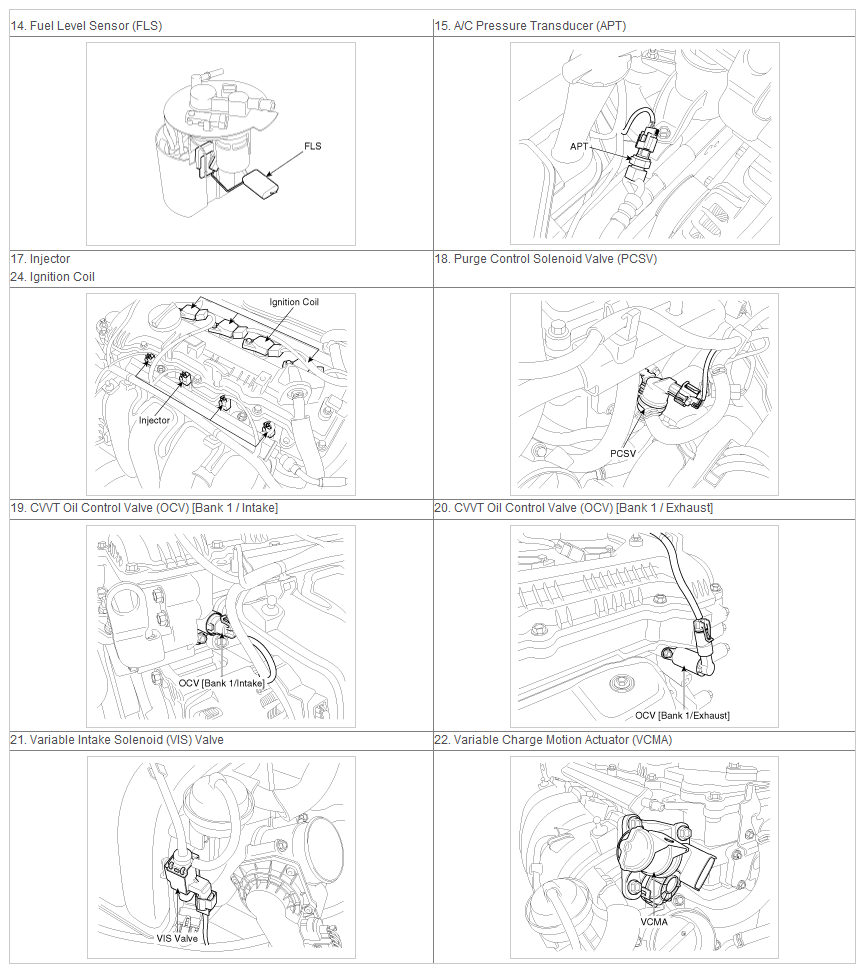

Fig 4: Engine Control System Components And Locations (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

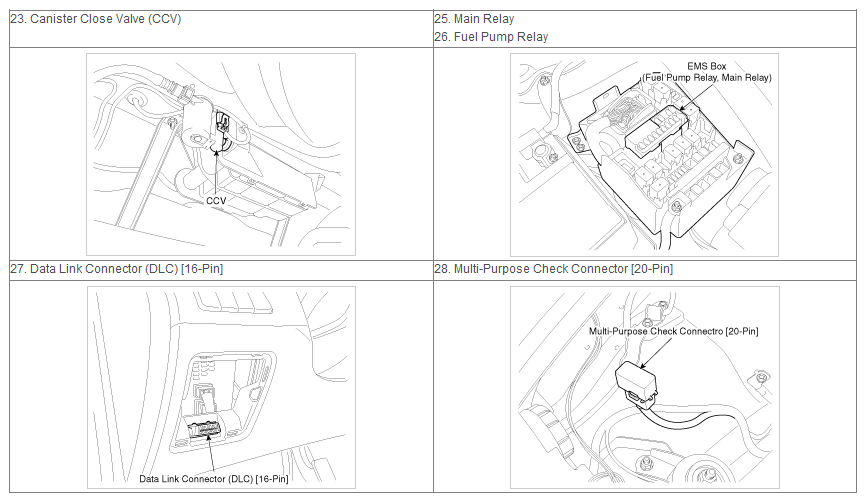

Fig 5: Engine Control System Components And Locations (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
