Home >> Hyundai >> 2013 >> Equus Ultimate >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System >> Shift Lever >> Components and Components Location >> Components

Components and Components Location: Components

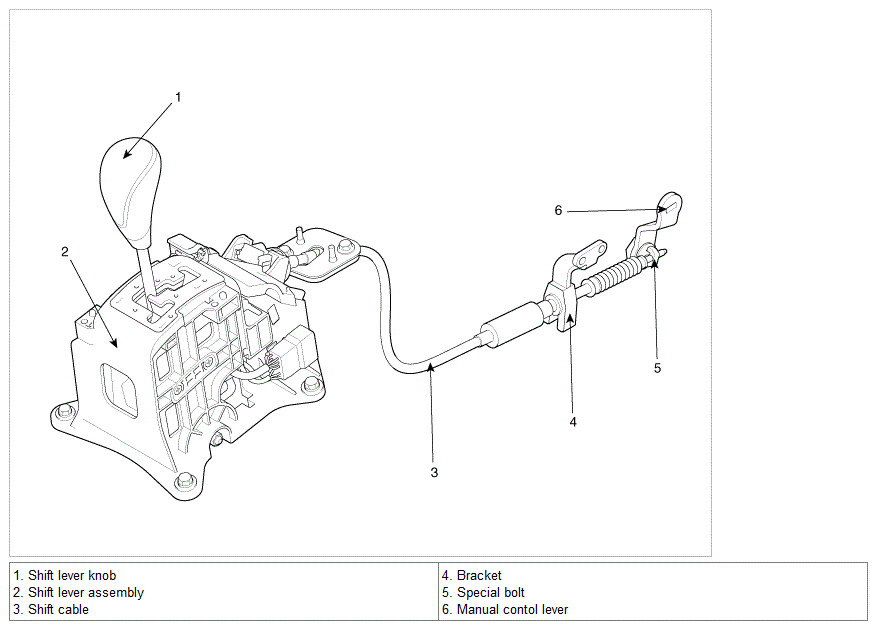

Fig 1: Shift Lever Components Location

G08830440

Courtesy of HYUNDAI MOTOR AMERICA
