Home >> Hyundai >> 2014 >> Azera Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Barometric Pressure Sensor (BPS) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the barometric pressure sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor from the air cleaner assembly.

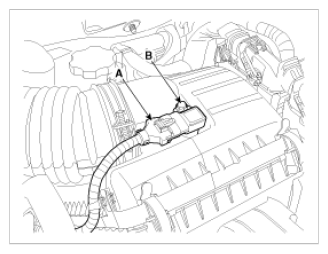

    Fig 1: Identifying Barometric Pressure Sensor Connector And Installation Bolt
    G08809660Courtesy of HYUNDAI MOTOR AMERICA
