Signal Waveform

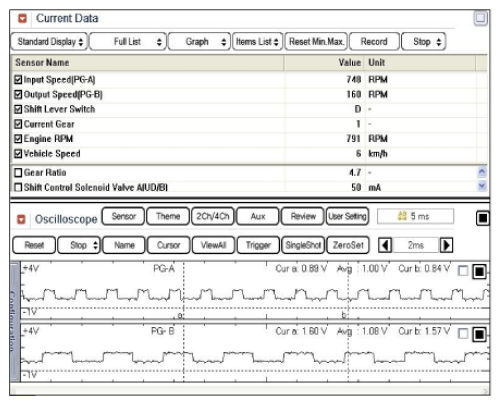

Fig 1: Input/Output Speed Sensor At Low Speed Signal Waveform
G08809924Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Input/Output Speed Sensor At High Speed Signal Waveform
G08809925Courtesy of HYUNDAI MOTOR AMERICA
