Signal waveform

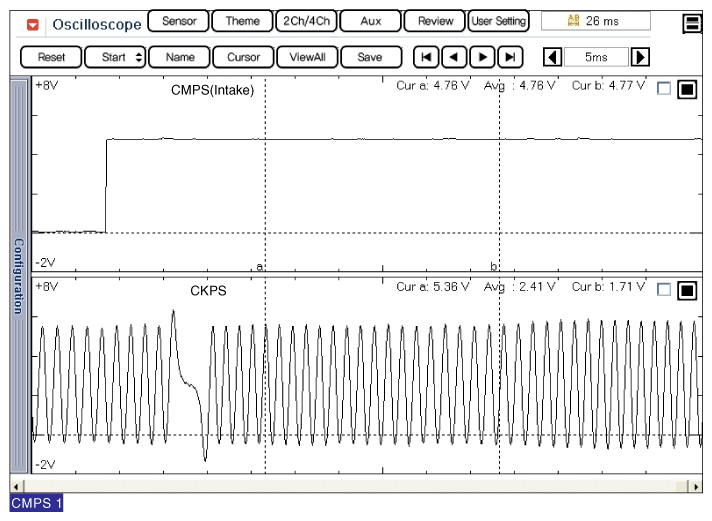

Fig 1: Display - Camshaft Position Sensor Signal Waveform Screen (1 Of 2)
G09798607Courtesy of HYUNDAI MOTOR AMERICA

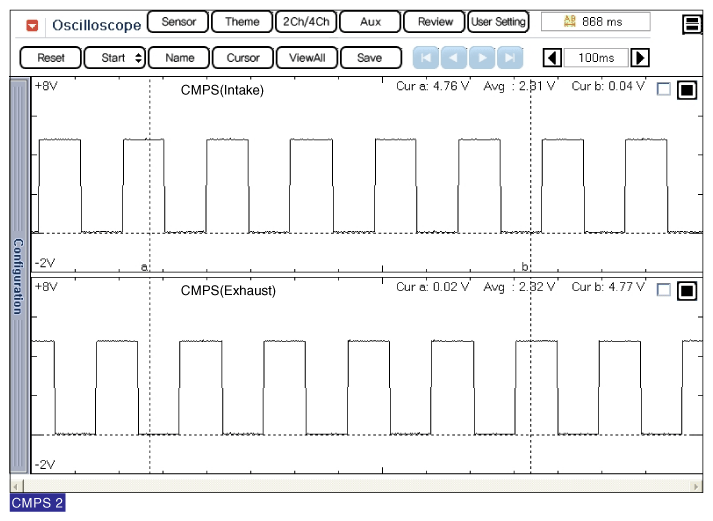

Fig 2: Display - Camshaft Position Sensor Signal Waveform Screen (2 Of 2)
G09798608Courtesy of HYUNDAI MOTOR AMERICA
