Components Location

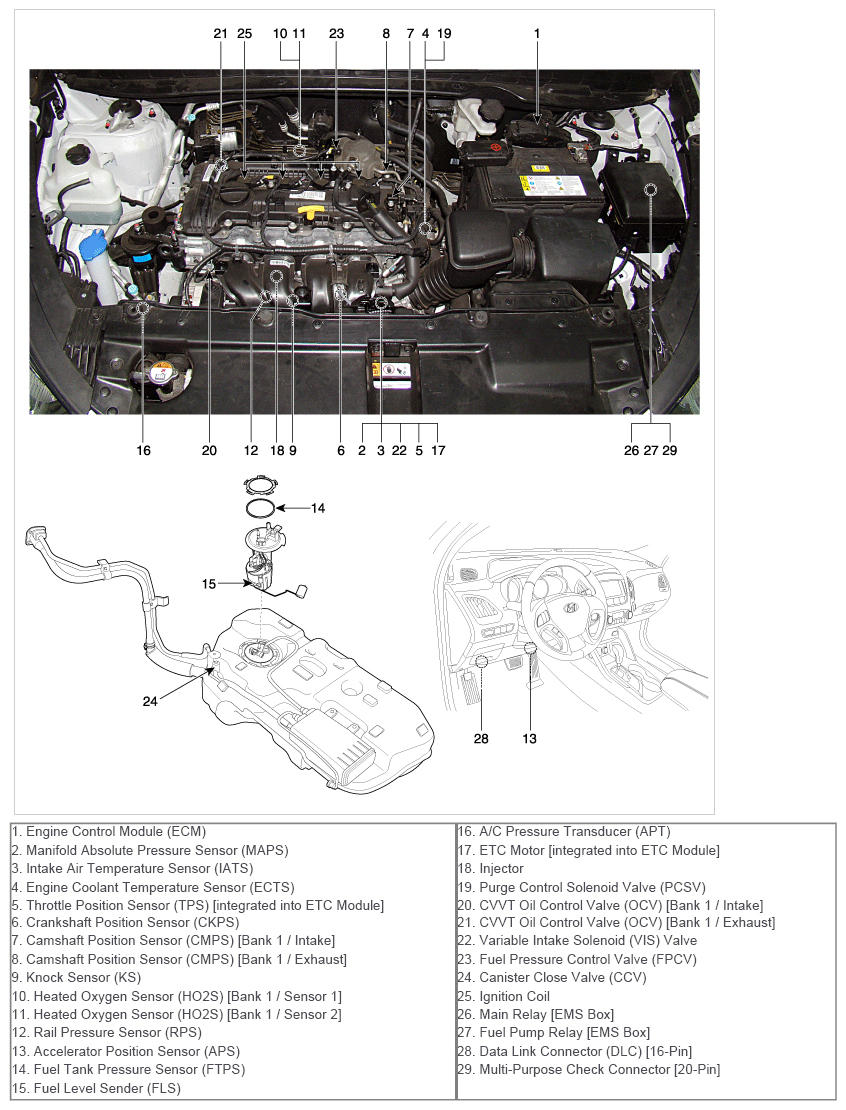

Fig 1: Engine Control Module System Components Location (1 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Engine Control Module System Components Location (2 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

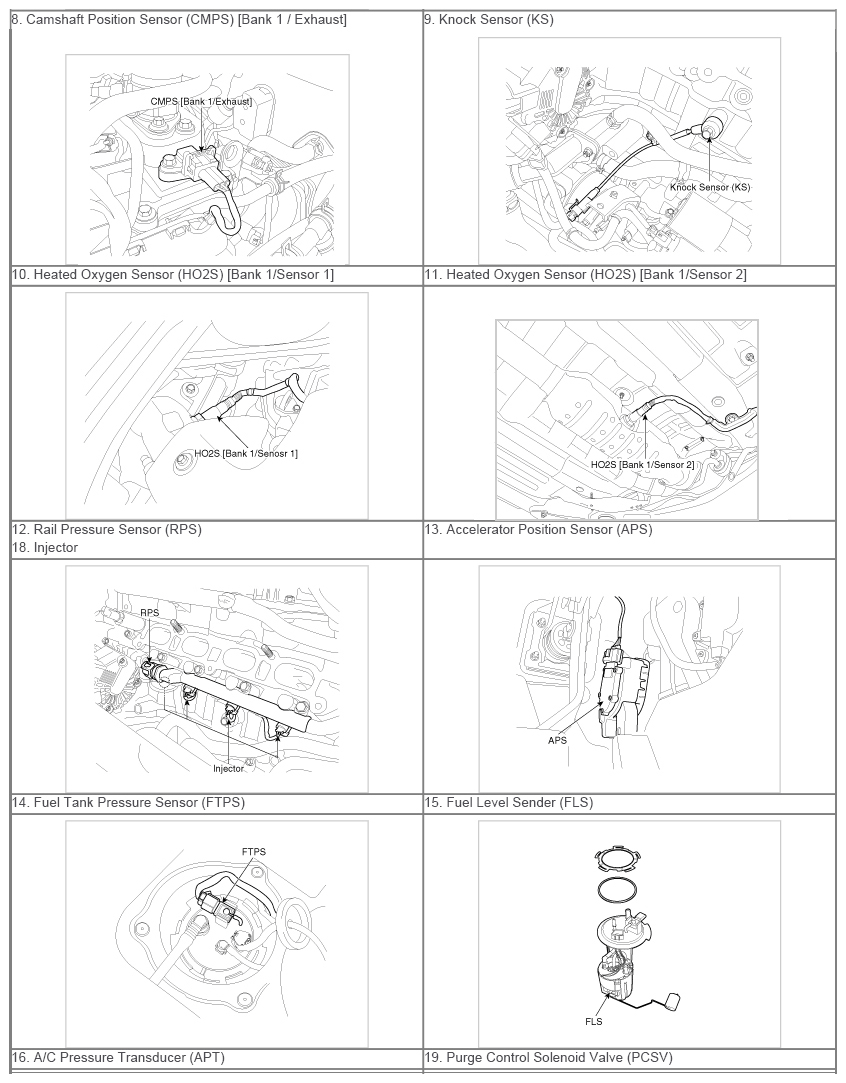

Fig 3: Engine Control Module System Components Location (3 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

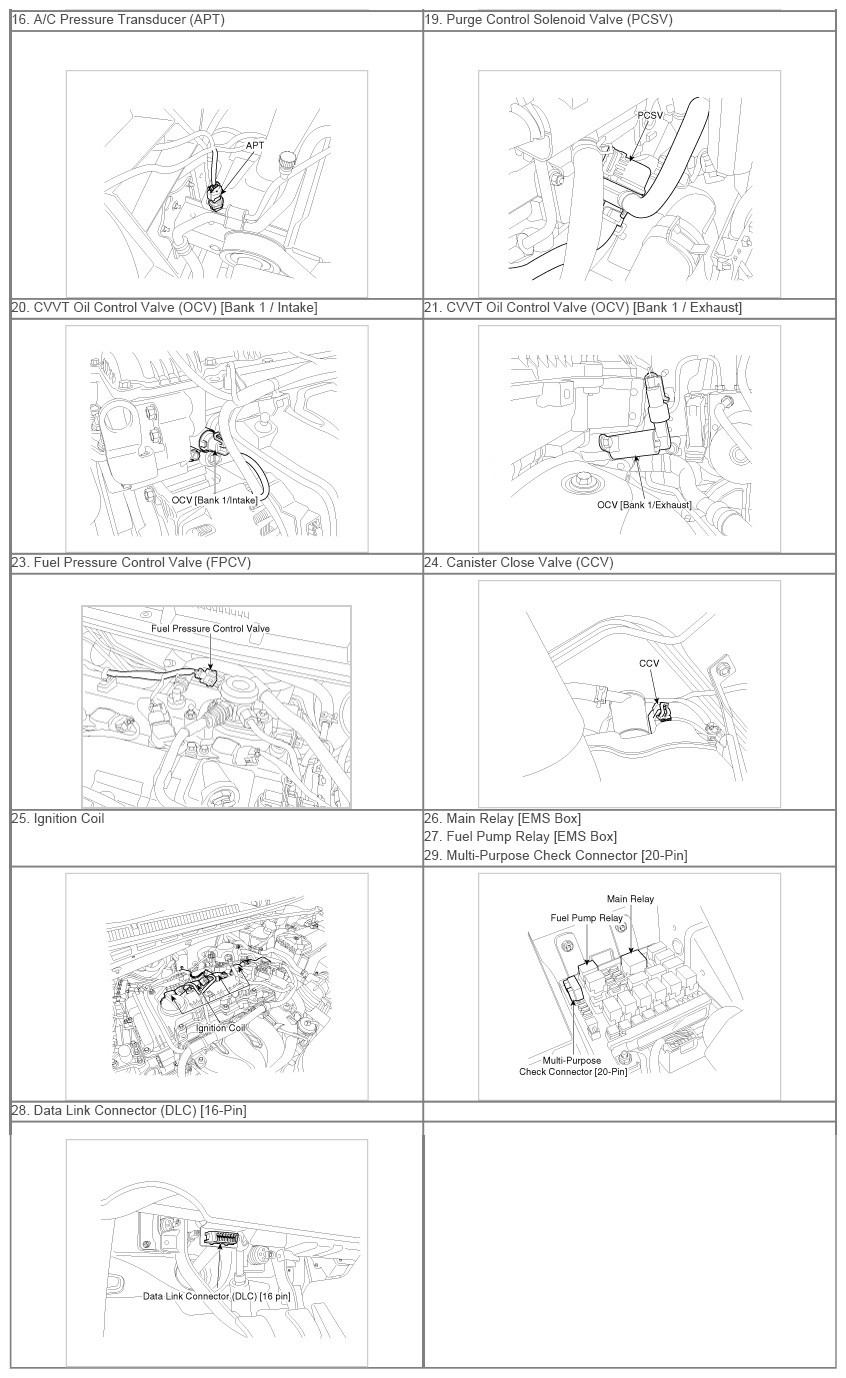

Fig 4: Engine Control Module System Components Location (4 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA
