Home >> Hyundai >> 2014 >> Veloster Turbo, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - Turbo >> Ambient Temperature Sensor (ATS) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the Ambient Temperature Sensor connect (A).
  3. Remove the Ambient Temperature Sensor bracket (B).

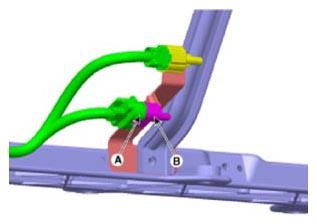

    Fig 1: Ambient Temperature Sensor Connect And Bracket
    G09151064Courtesy of HYUNDAI MOTOR AMERICA
