Bank 1/Sensor 2

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the console side cover (A).

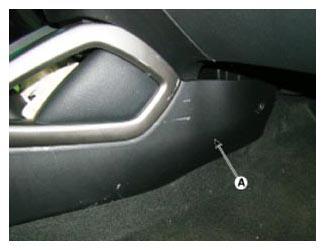

    Fig 1: Console Side Cover
    G09151097Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the connector (A).

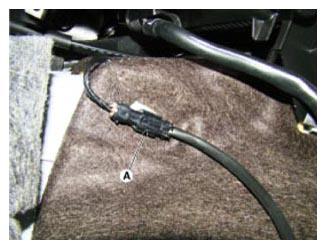

    Fig 2: HO2S Connector (B1S2)
    G09151098Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove heated oxygen sensor (A).

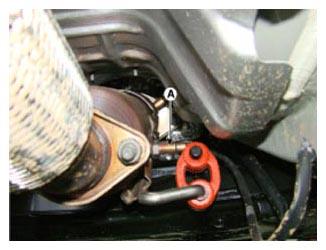

    Fig 3: Heated Oxygen Sensor (B1S2)
    G09151099Courtesy of HYUNDAI MOTOR AMERICA
