Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air duck (A).

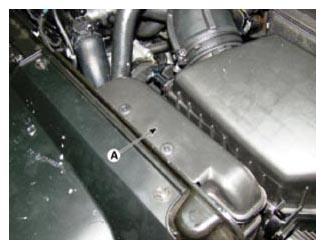

    Fig 1: Air Duct
    G09151140Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the cooling pan control connector (A) and cooling pan & RCV extension connector (B) from the bracket.

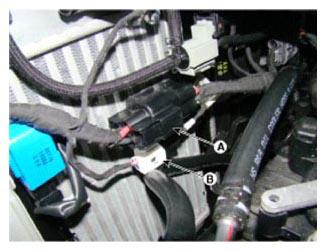

    Fig 2: Cooling Pan Control & Recirculation Valve Extension Connectors
    G09151141Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the RCV control solenoid valve connector (A) and vapor hose (B).
  5. Remove the installation bolts (C) and then RCV control solenoid valve (D).

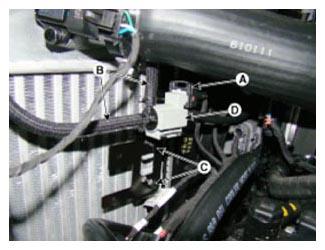

    Fig 3: RCV Control Solenoid Valve, Connector & Vapor Hose
    G09151142Courtesy of HYUNDAI MOTOR AMERICA
