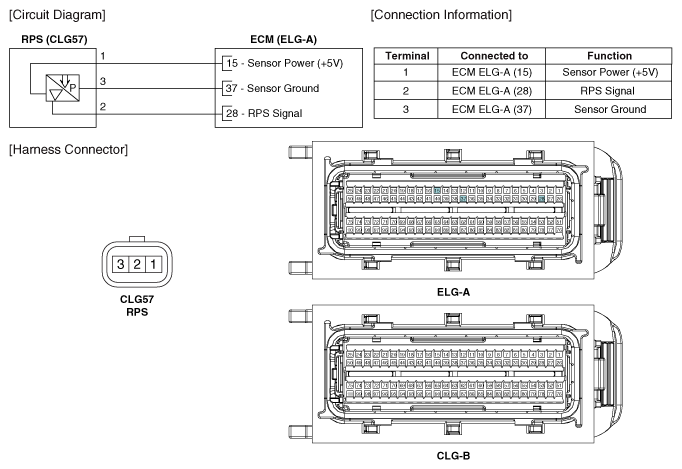

Home >> Hyundai >> 2016 >> Azera Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Rail Pressure Sensor (RPS) >> Schematic Diagrams >> Circuit Diagram
