Engine Control System - 1.8L
>>
Components and Components Location
>>
Components Location
Components Location

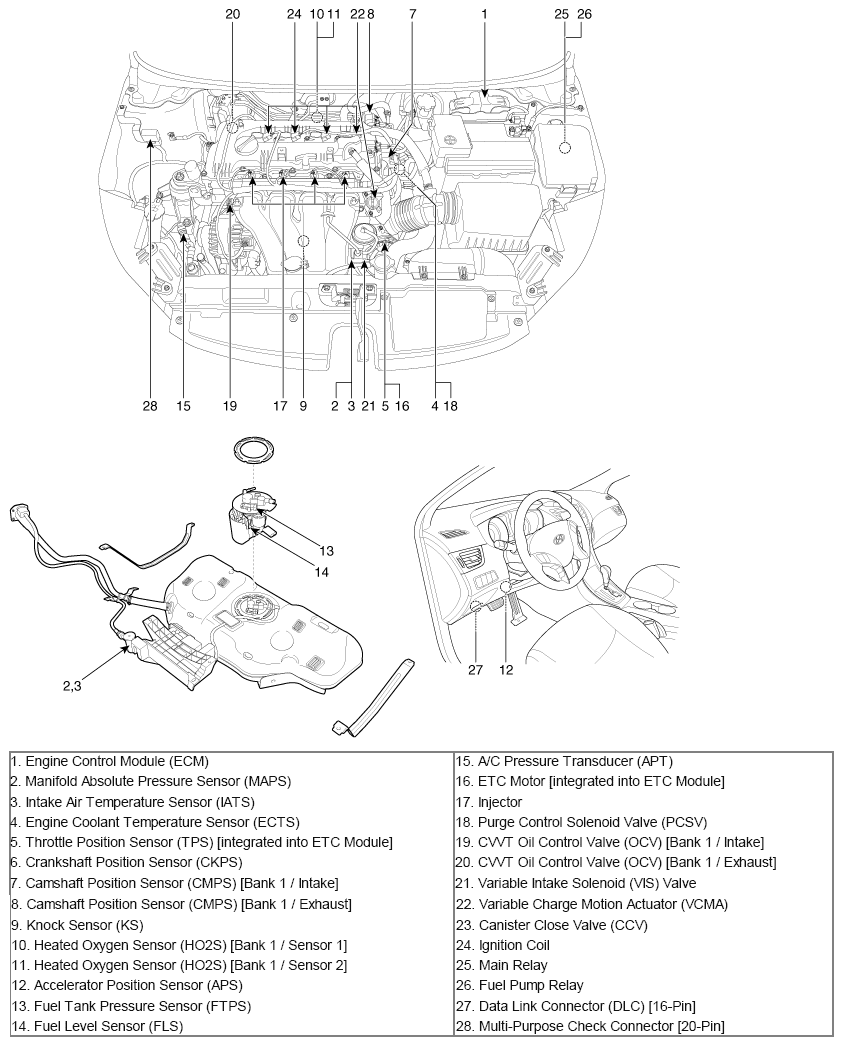

Fig 1: Engine Compartment Components Location (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

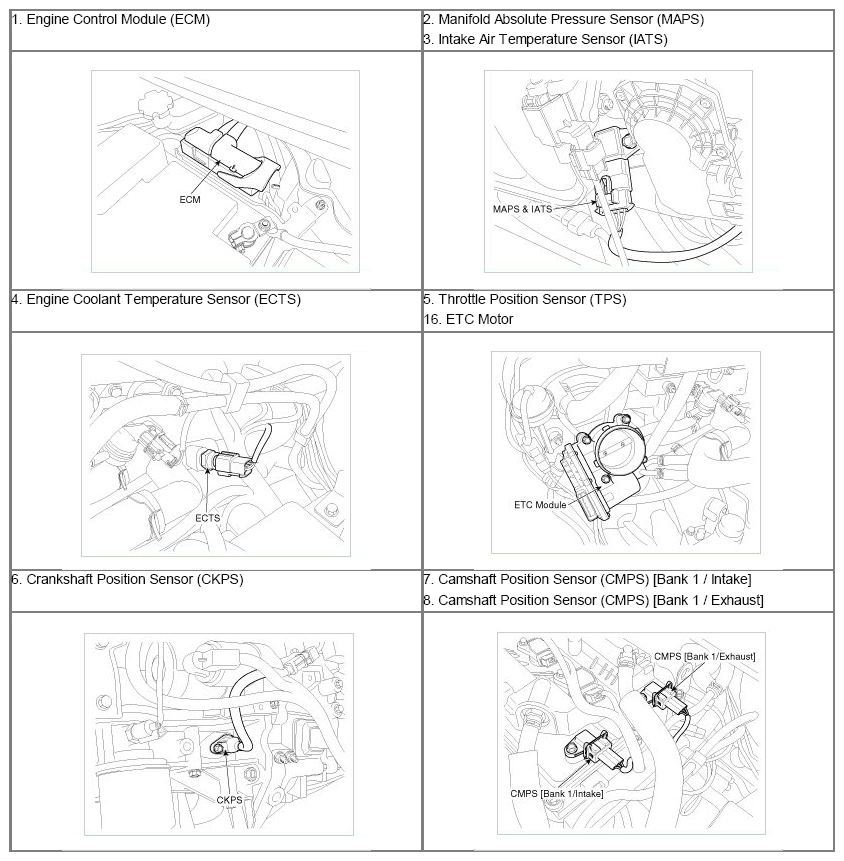

Fig 2: Engine Compartment Components Location (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

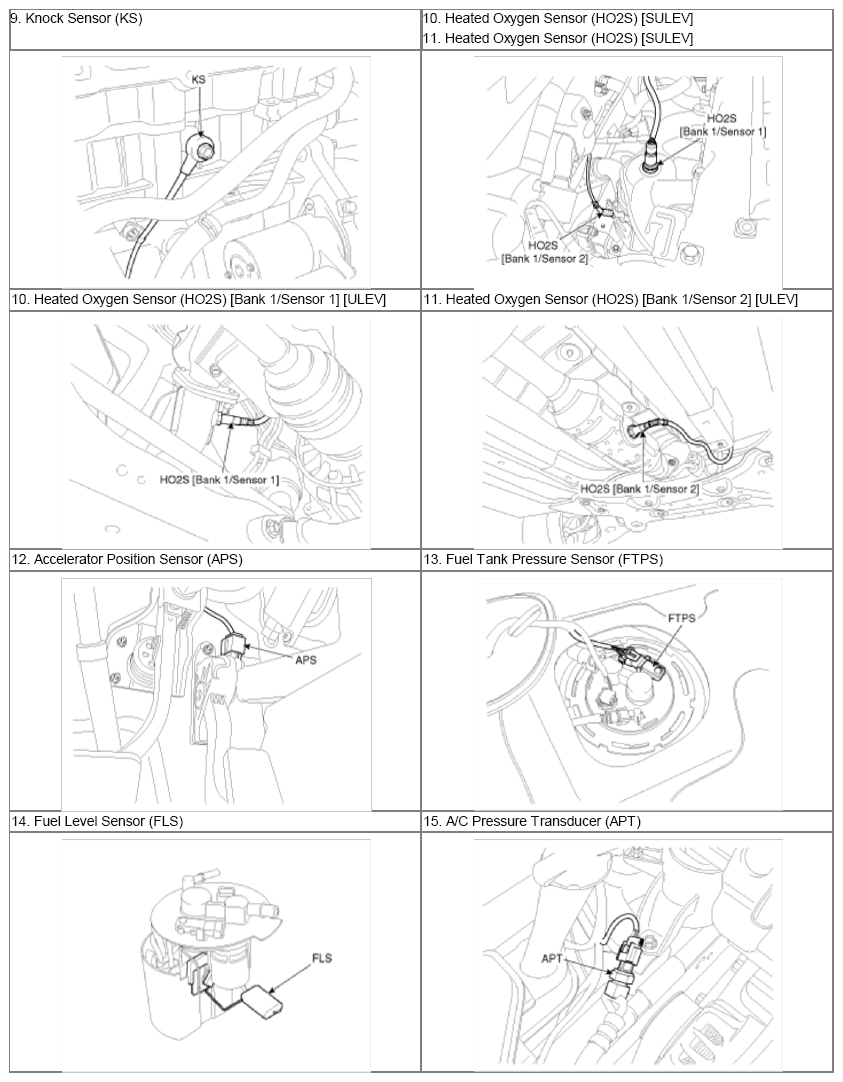

Fig 3: Engine Compartment Components Location (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

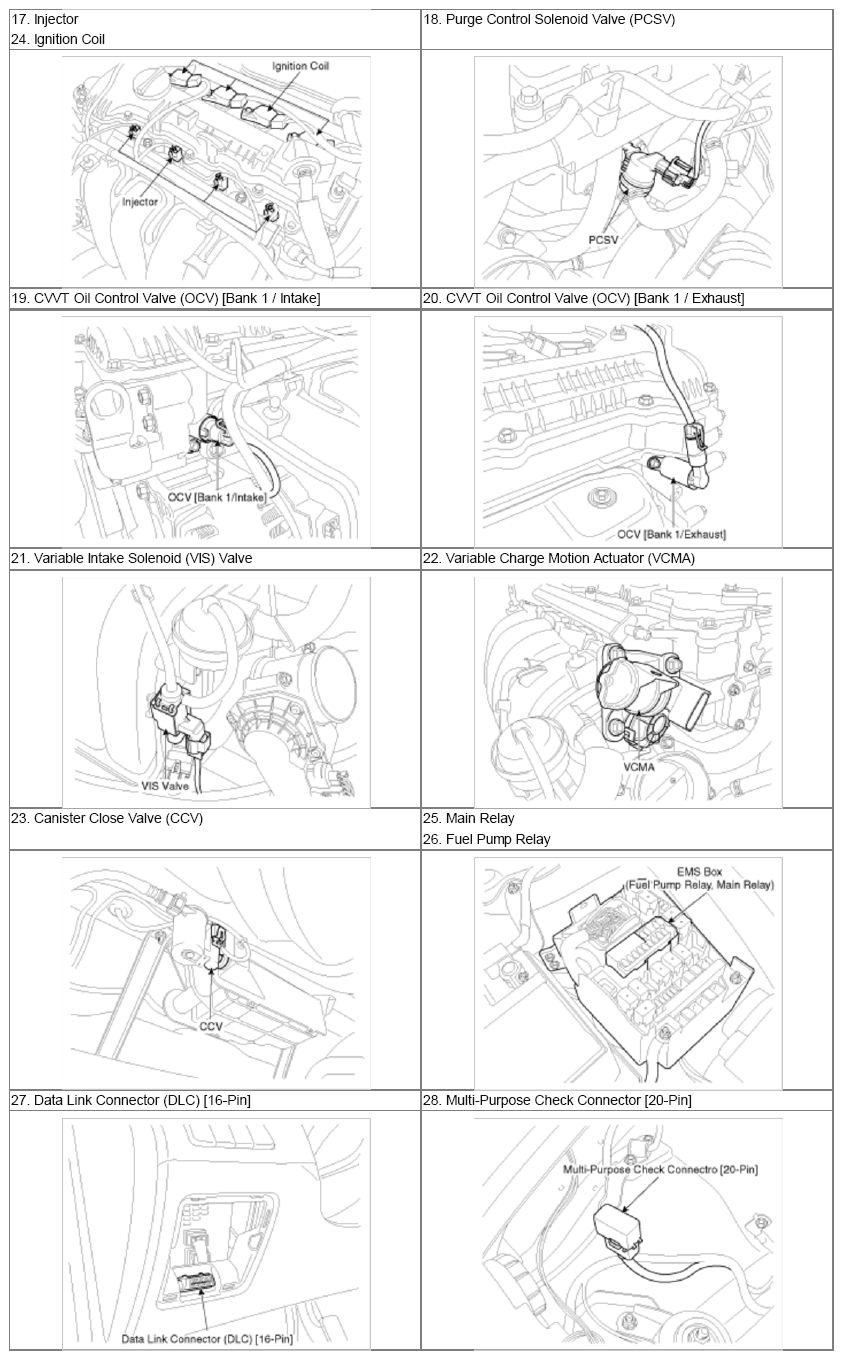

Fig 4: Engine Compartment Components Location (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
