Home >> Hyundai >> 2016 >> Equus Signature >> Repair and Diagnosis >> Electrical >> Starter >> Button Engine Start System >> Start/Stop Button >> Components and Components Location >> Component

Components and Components Location: Component

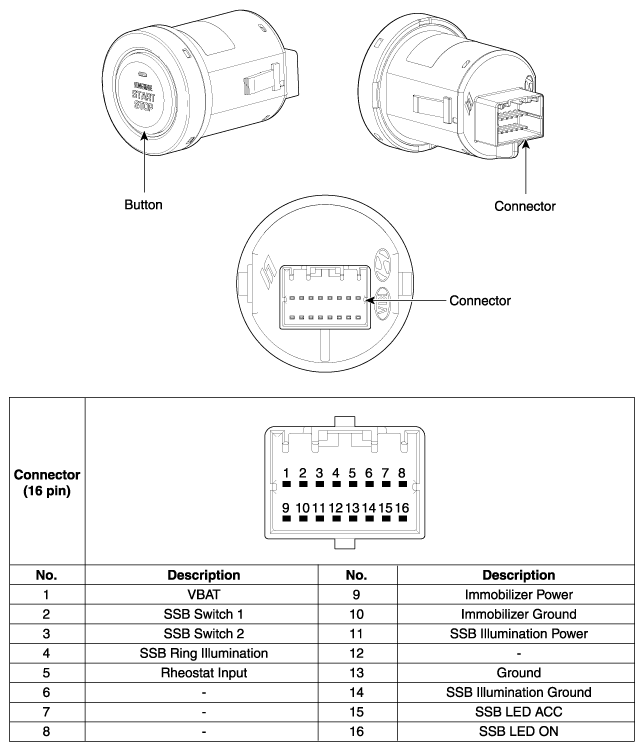

Fig 1: Start/Stop Button Connector Terminal Identification

G10387584

Courtesy of HYUNDAI MOTOR AMERICA
