Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

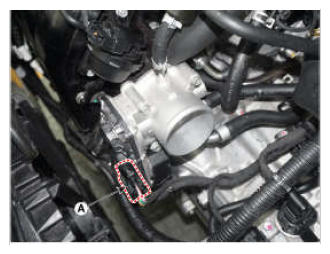

  3. Disconnect the ETC module connector (A).
    G12598488Courtesy of HYUNDAI MOTOR AMERICA

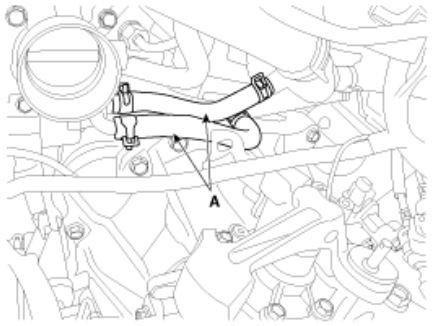

  4. Disconnect the coolant hoses (A).
    G12598489Courtesy of HYUNDAI MOTOR AMERICA

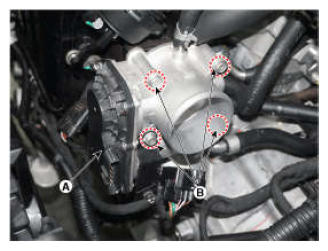

  5. Remove the installation bolts (B), and then remove the ETC module (A) from the engine.
G12598490Courtesy of HYUNDAI MOTOR AMERICA
