Home >> Hyundai >> 2020 >> Elantra SEL >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Components And Components Location >> Components Location

Components Location

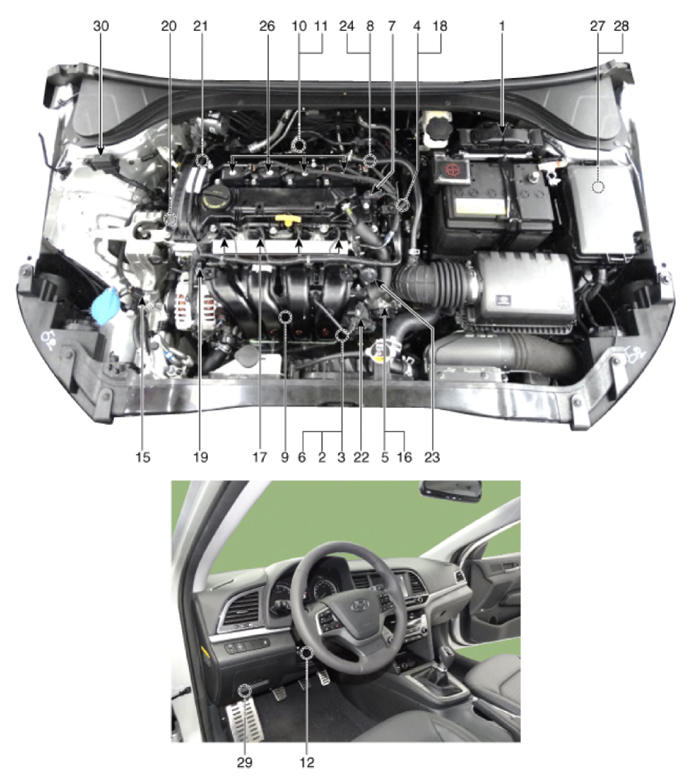

G14084459Courtesy of HYUNDAI MOTOR AMERICA

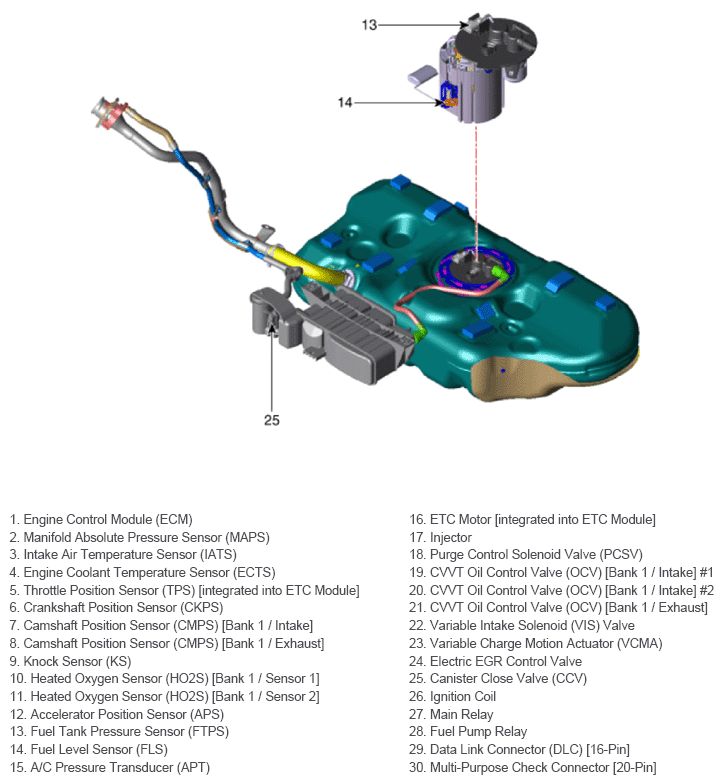

G14084460Courtesy of HYUNDAI MOTOR AMERICA

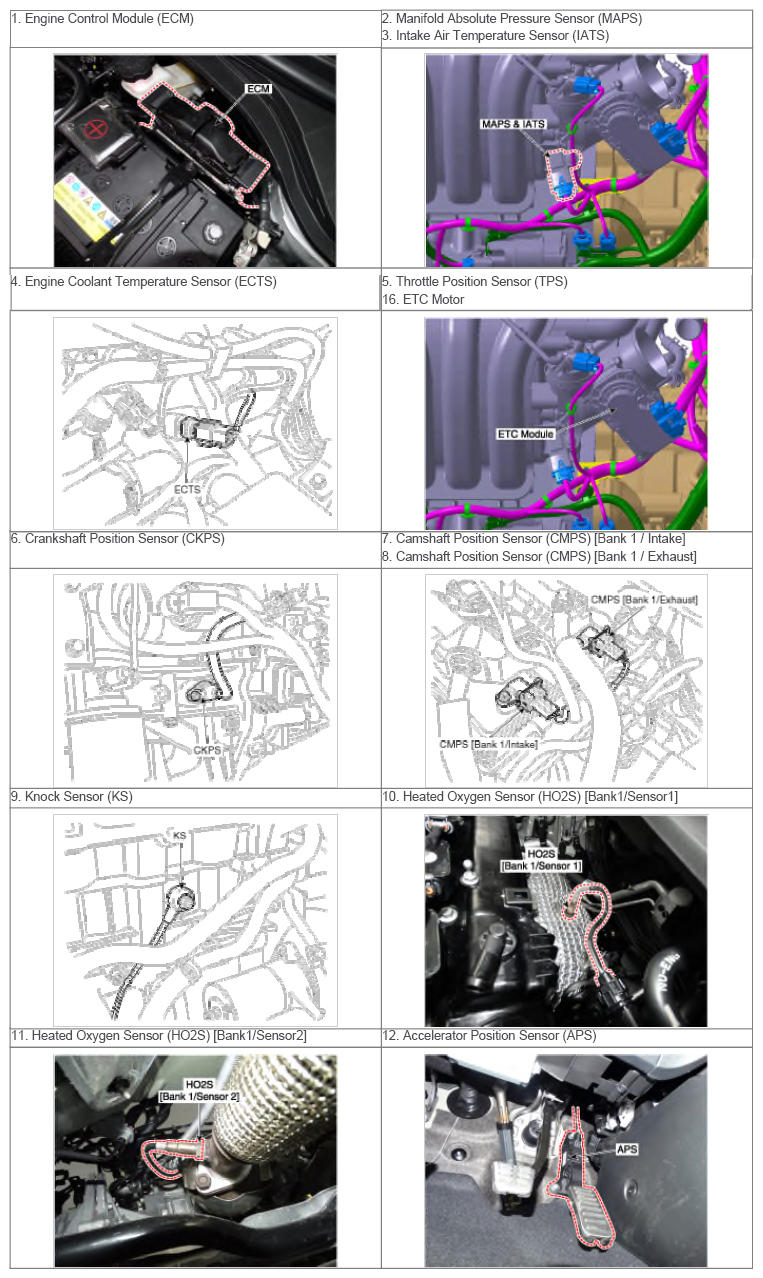

G14084461Courtesy of HYUNDAI MOTOR AMERICA

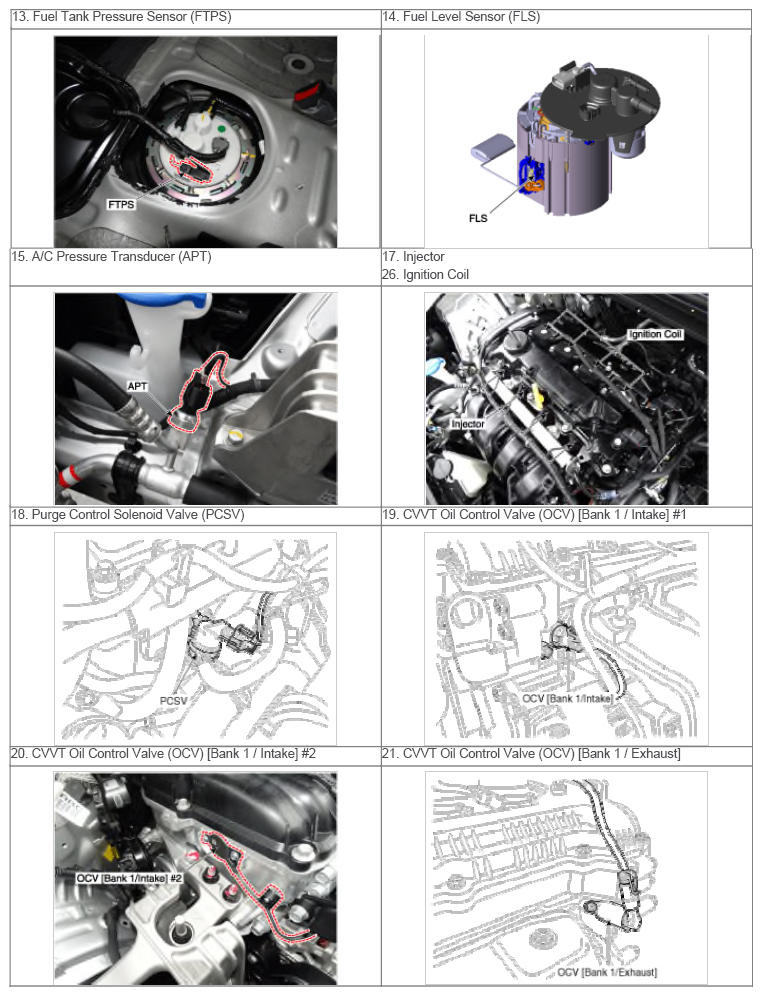

G14084462Courtesy of HYUNDAI MOTOR AMERICA

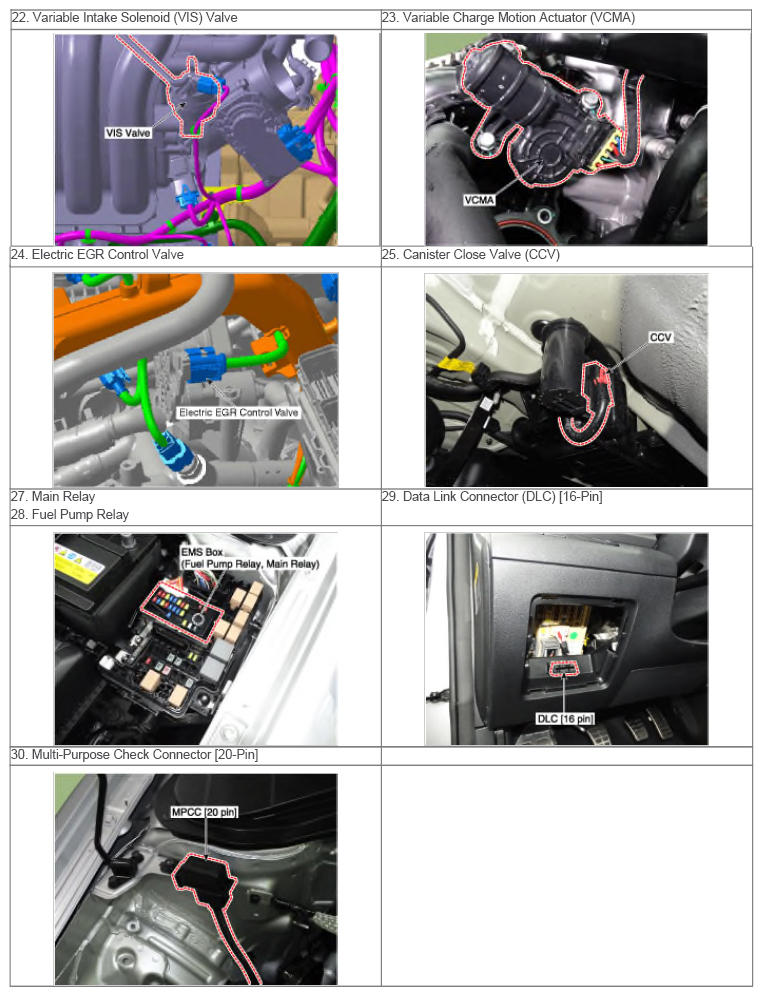

G14084463Courtesy of HYUNDAI MOTOR AMERICA
