Home >> Hyundai >> 2020 >> Venue SEL >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Thermal Management Module (TMM) Motor >> Components & Components Location >> Components

Components & Components Location: Components

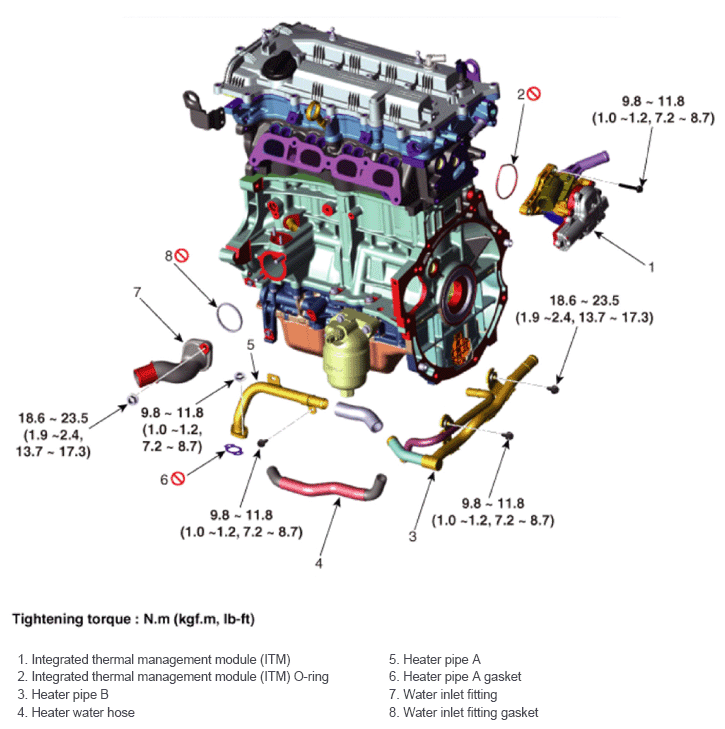

Fig 1: Thermal Management Module Motor Components Location With Torque Specification

G14694531

Courtesy of HYUNDAI MOTOR AMERICA
