Components Location

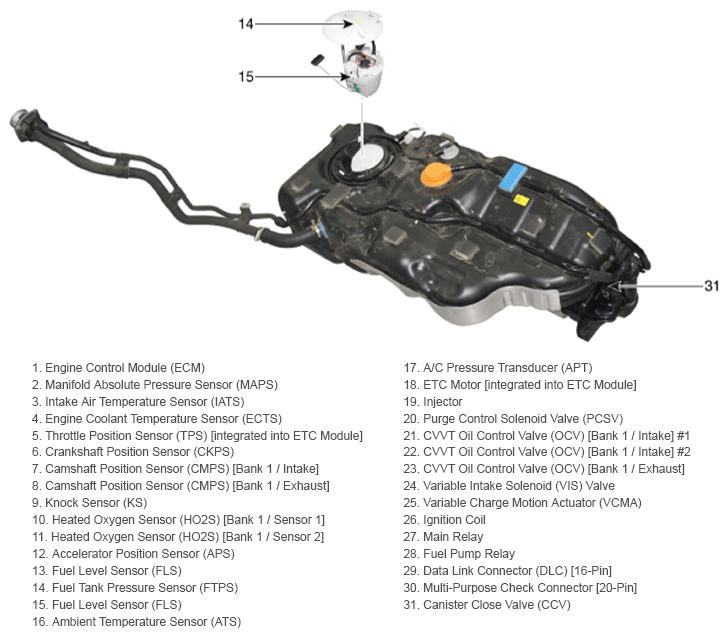

Fig 1: Locating Engine Control System Components (1 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

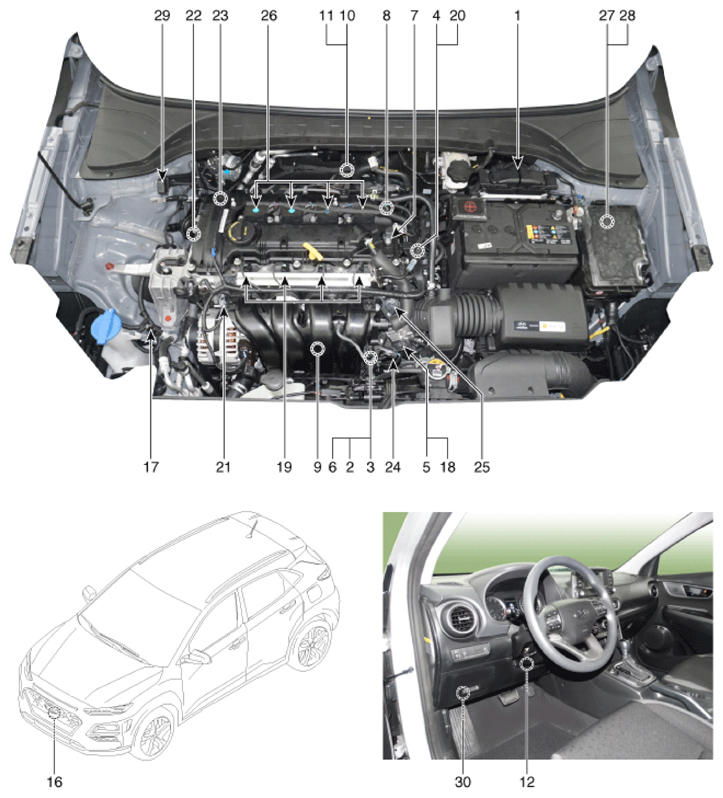

Fig 2: Locating Engine Control System Components (2 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

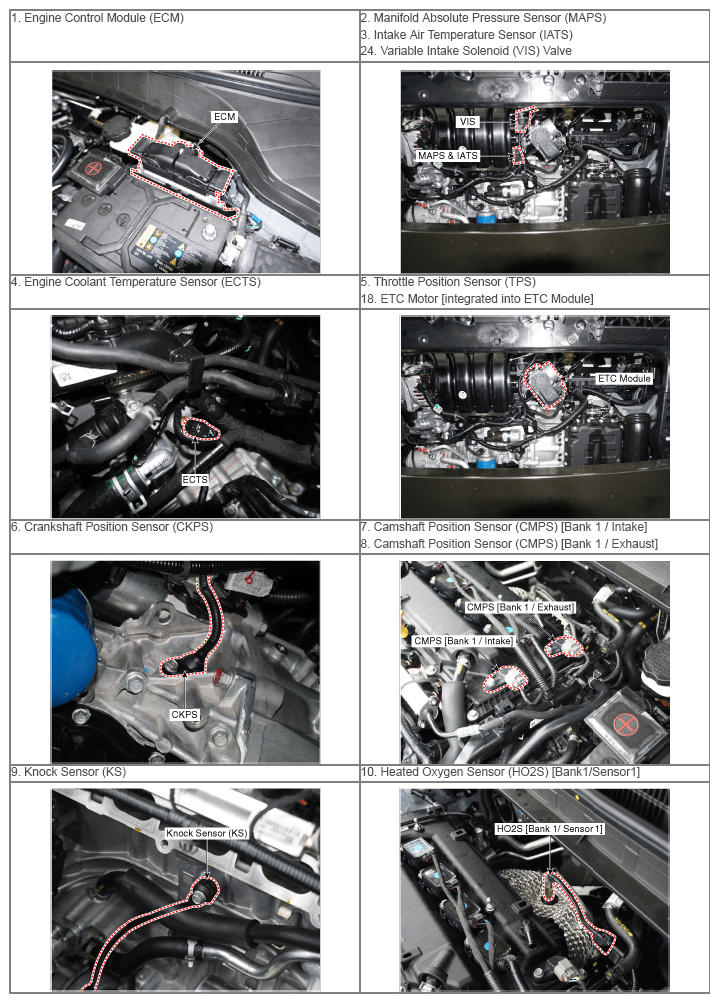

Fig 3: Locating Engine Control System Components (3 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

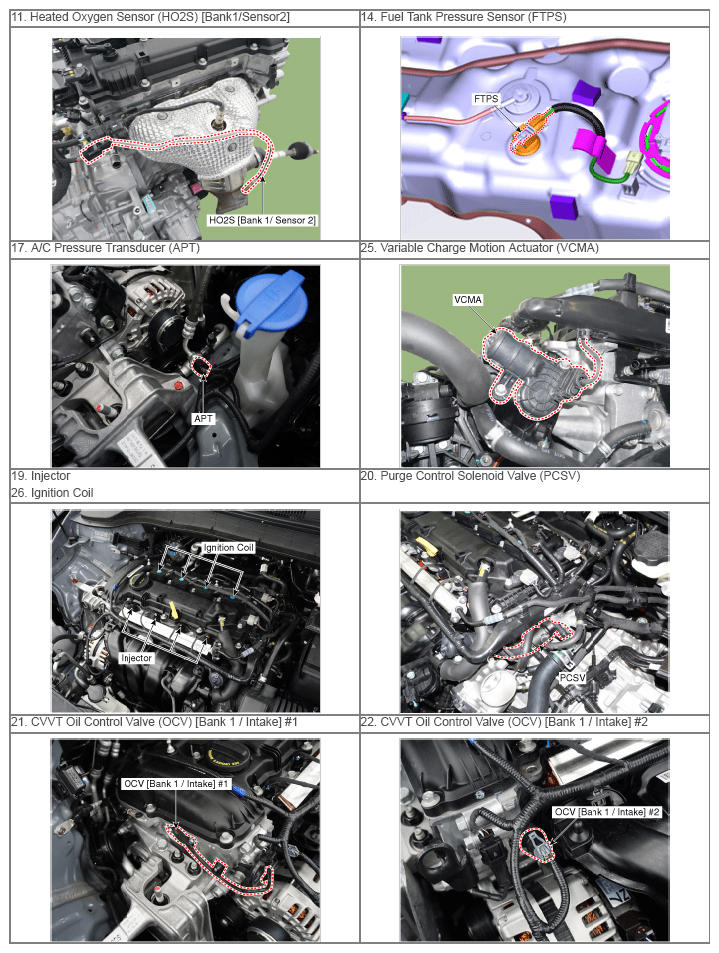

Fig 4: Locating Engine Control System Components (4 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

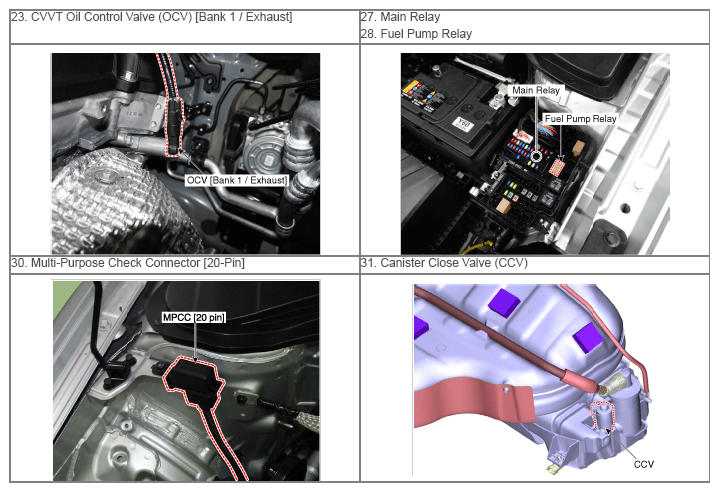

Fig 5: Locating Engine Control System Components (5 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA
