Home >> Hyundai >> 2021 >> Kona SEL, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Crankshaft Position Sensor (CKPS) >> Troubleshooting >> Waveform

Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

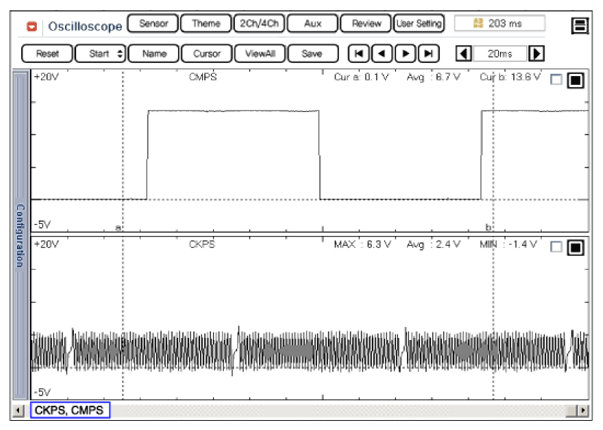

G12606895

Courtesy of HYUNDAI MOTOR AMERICA

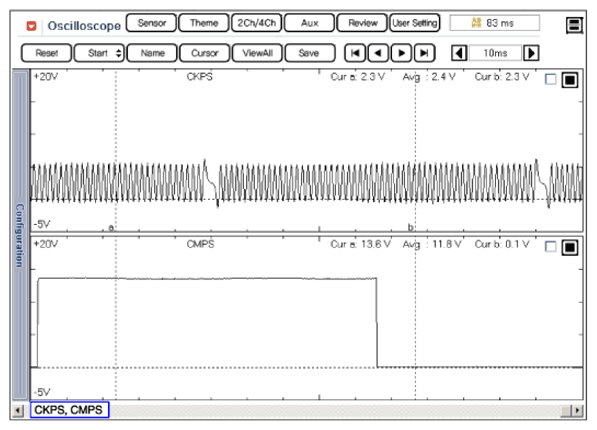

G12606896

Courtesy of HYUNDAI MOTOR AMERICA
