Home >> Hyundai >> 2021 >> Tucson SE, 4WD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Components And Components Location >> Components Location

Components Location

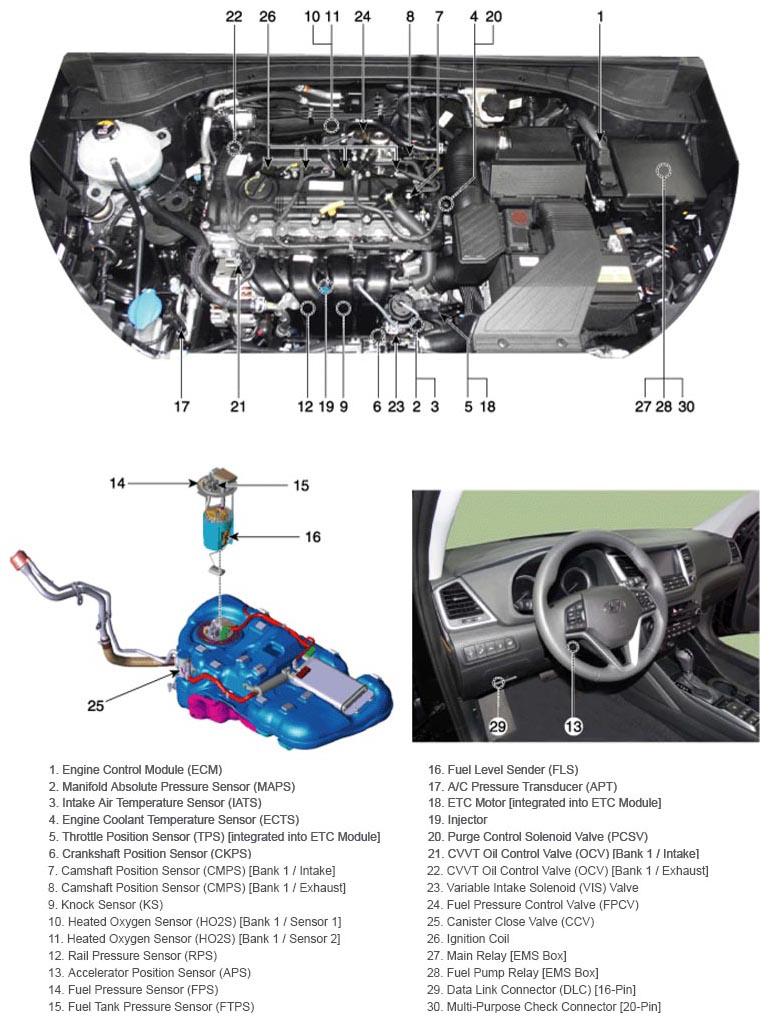

G13020916Courtesy of HYUNDAI MOTOR AMERICA

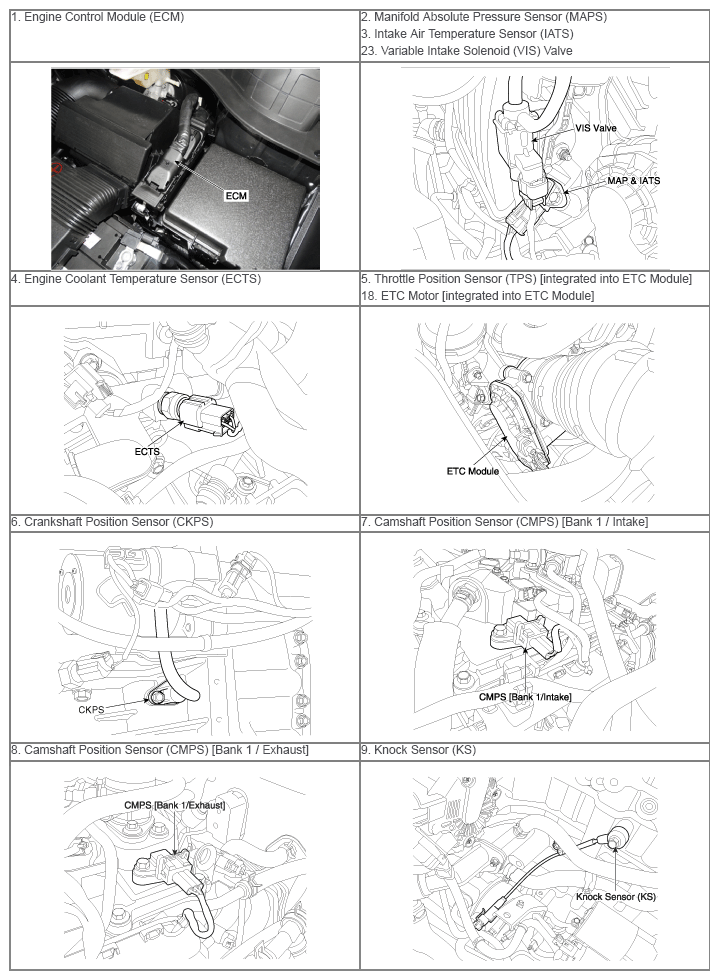

G13020917Courtesy of HYUNDAI MOTOR AMERICA

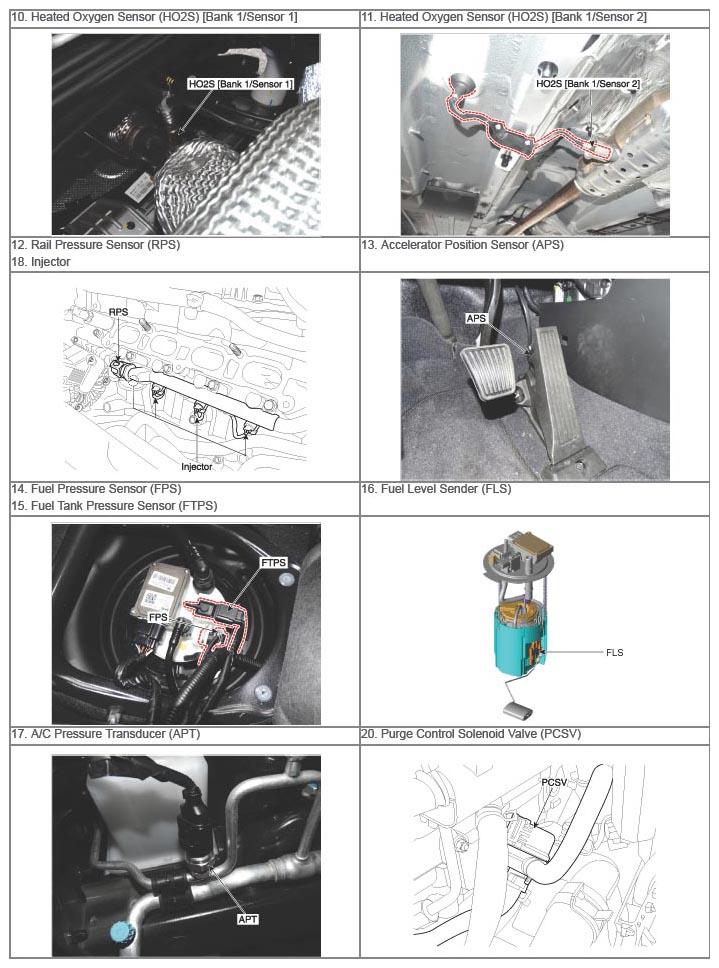

G13020918Courtesy of HYUNDAI MOTOR AMERICA

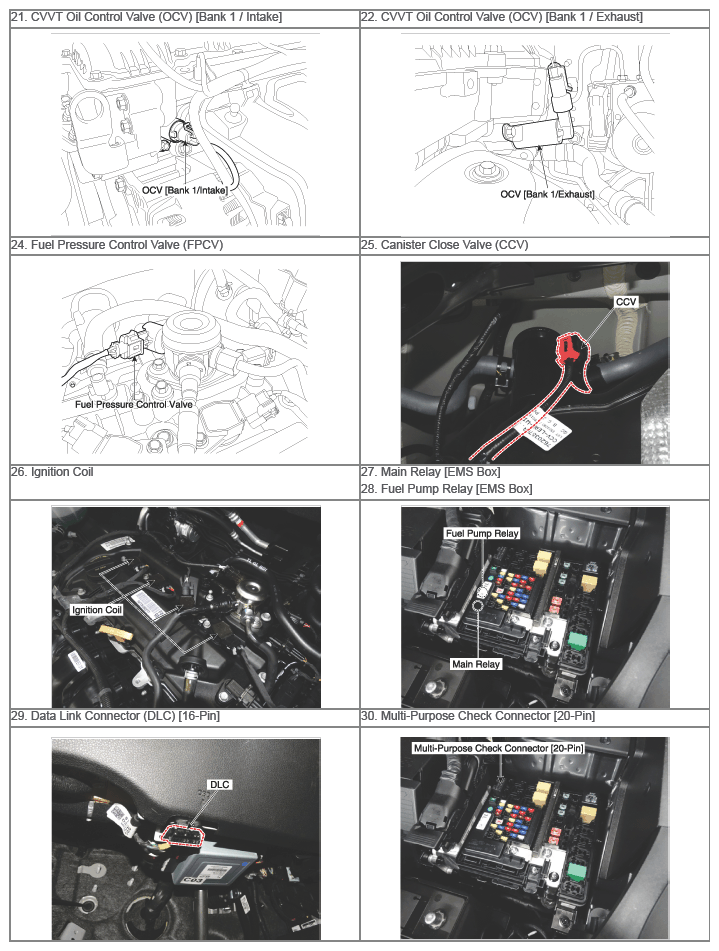

G13020919Courtesy of HYUNDAI MOTOR AMERICA
