Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector (A).
    G13035057Courtesy of HYUNDAI MOTOR AMERICA

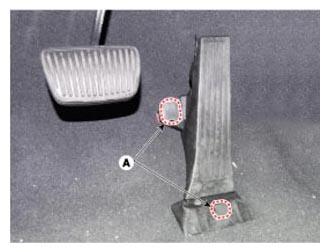

  3. Remove the mounting cap (A).
    G13035058Courtesy of HYUNDAI MOTOR AMERICA

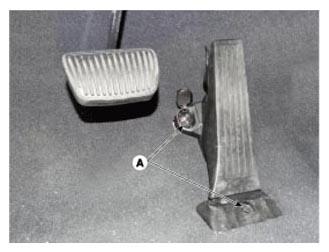

  4. Remove the installation bolt (A), and then remove the accelerator pedal module.

    Accelerator Pedal Module Installation Bolt:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G13035059Courtesy of HYUNDAI MOTOR AMERICA
