Home >> Hyundai >> 2021 >> Veloster 2.0, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Components & Component Location >> Components Location

Components Location

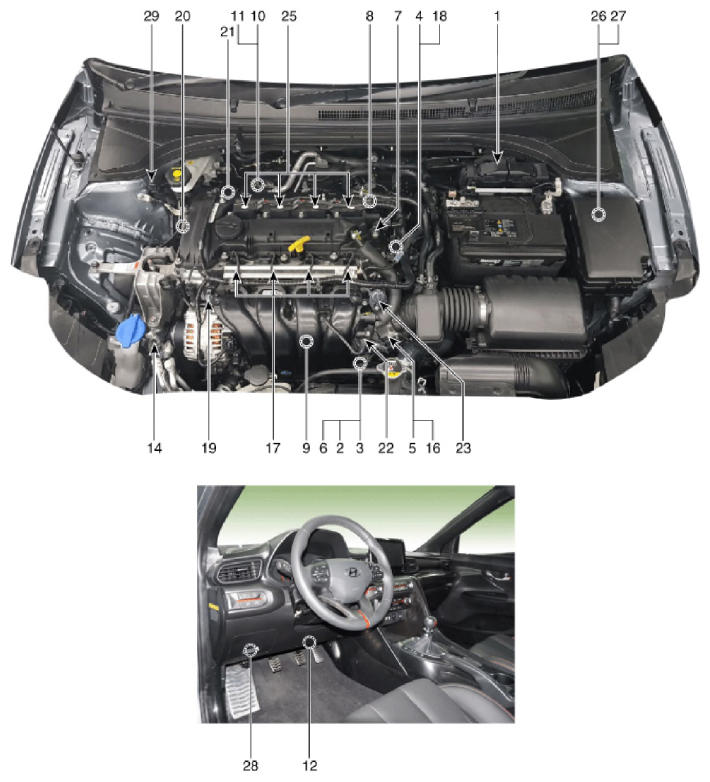

G13055506Courtesy of HYUNDAI MOTOR AMERICA

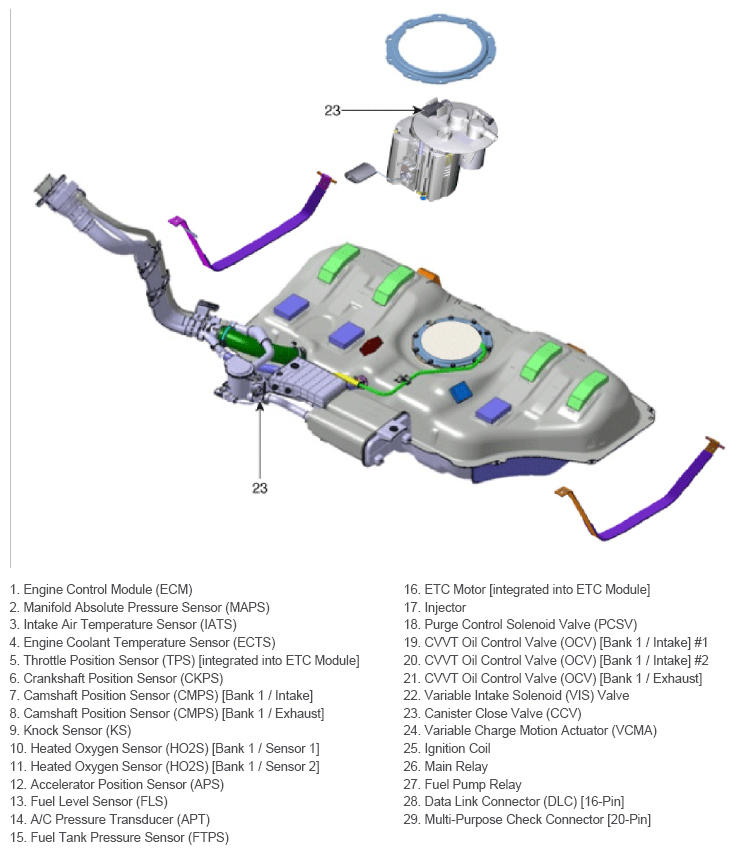

G13055507Courtesy of HYUNDAI MOTOR AMERICA

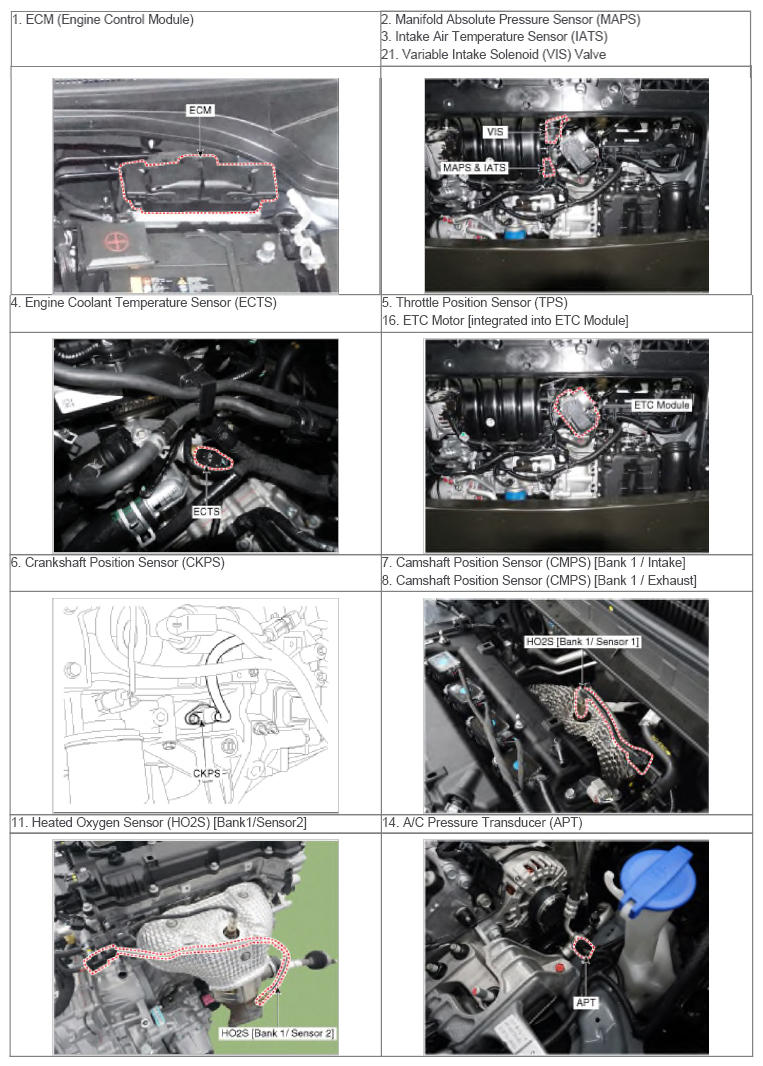

G13055508Courtesy of HYUNDAI MOTOR AMERICA

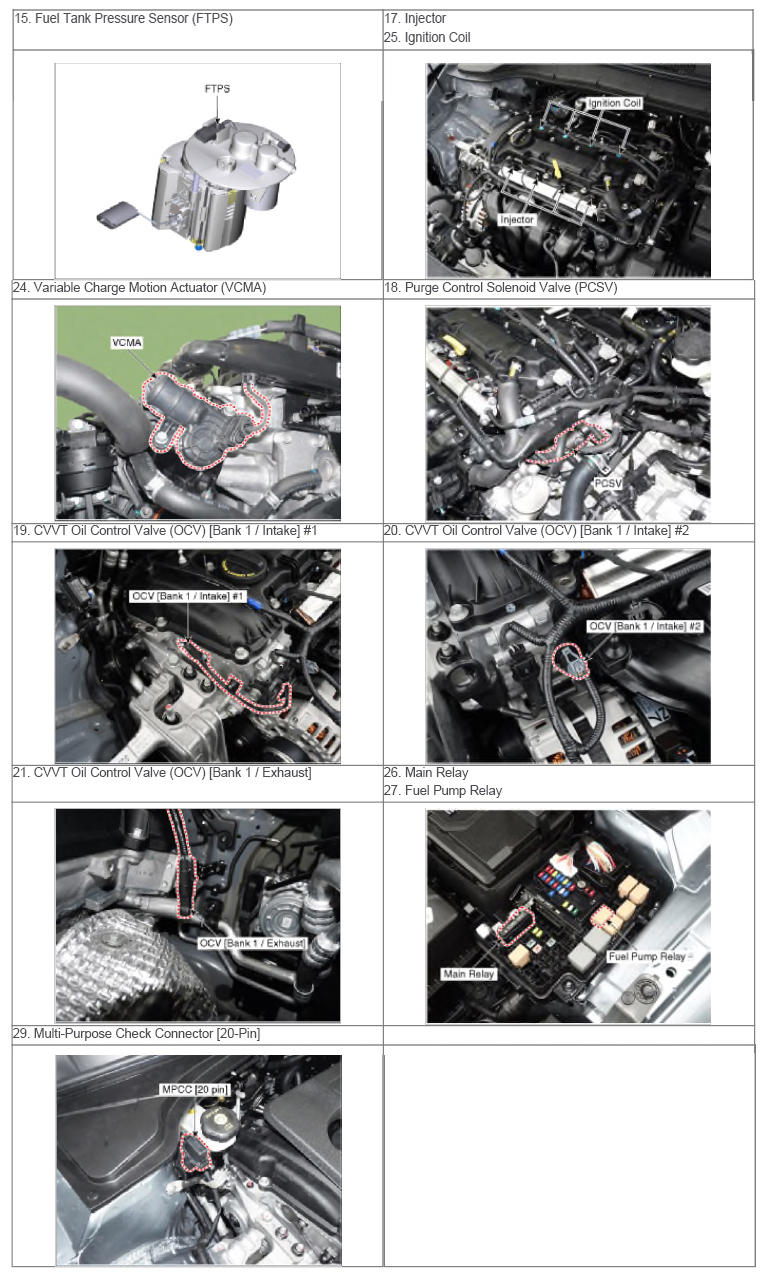

G13055509Courtesy of HYUNDAI MOTOR AMERICA
