Home >> Hyundai >> 2021 >> Veloster 2.0, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> ETC (Electronic Throttle Control) System >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

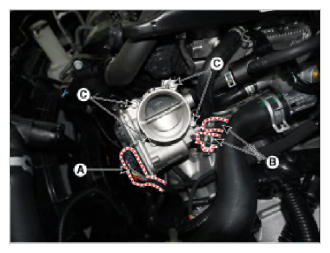

  3. Disconnect the ETC module connector (A), coolant hoses (B) from the ETC module, unfasten the bolts (C), and then remove the ETC module from the engine.
G13055522Courtesy of HYUNDAI MOTOR AMERICA
