Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

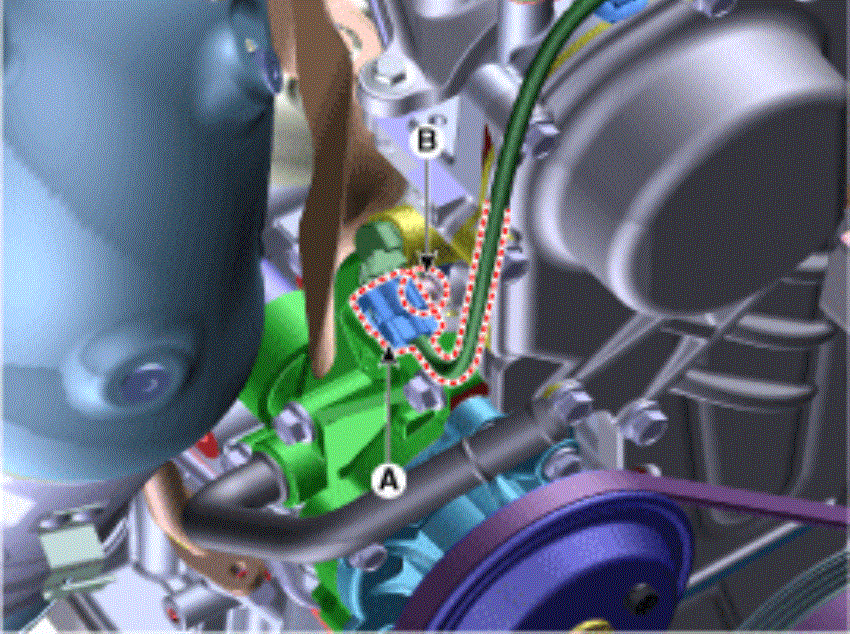

  2. Disconnect the CVVT oil control valve connector (A).
  3. Remove the installation bolt (B), and then remove the valve from the engine.

[Bank 1/Exhaust]

G15472148Courtesy of HYUNDAI MOTOR AMERICA
