Repair Procedures: Adjustment
NOTE:

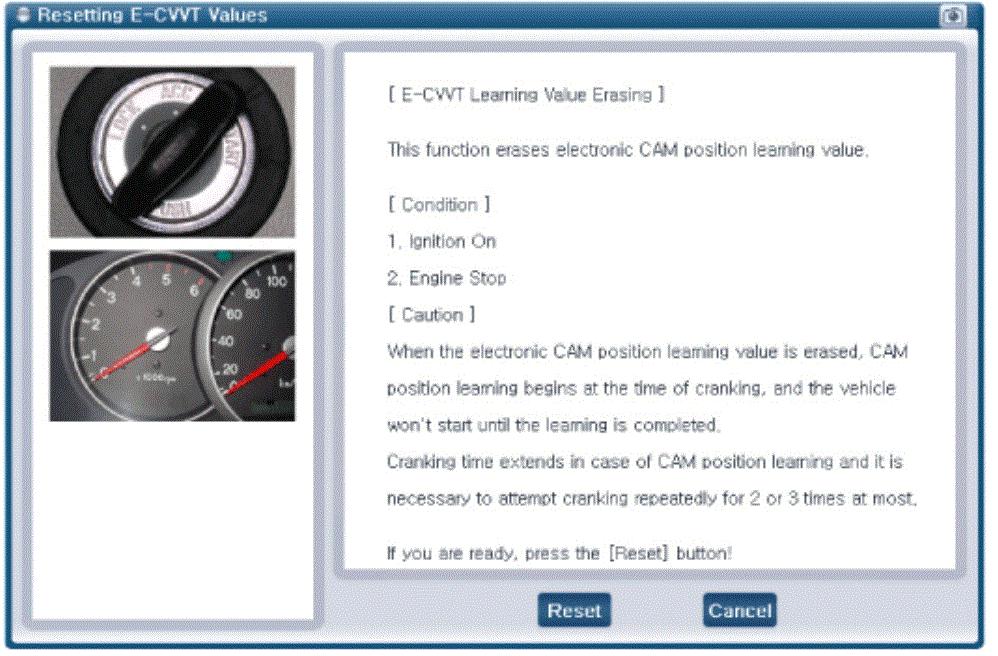

- When the electric E-CVVT assembly is replaced or remounted, make sure to use the additional feature menu on the diagnostic tool diagnosis equipment and reset the learned value.
- When the learned value for electronic cam position is erased, start learning the cam position while cranking. When it is completed, engine is started.
- Cranking should be repeated for maximum 2 to 3 for learning.
