Accelerator Position Sensor (APS): Specifications: Specification

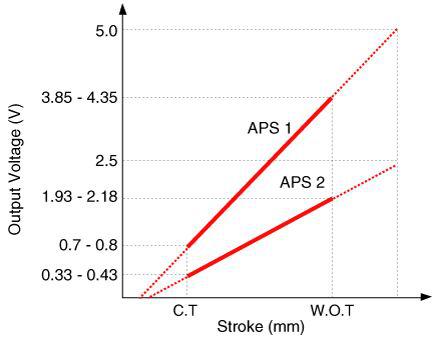

Accelerator Position Output Voltage (V) [Vref = 5V]
APS1 APS2
C.T 0.7-0.8 0.33-0.43
W.O.T 3.85-4.35 1.93-2.18
G14423872Courtesy of HYUNDAI MOTOR AMERICA
