Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

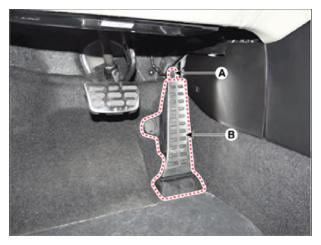

  2. Disconnect the accelerator position sensor connector (A).
  3. Remove the accelerator position sensor (B) after loosening the mounting bolts.

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G15477135Courtesy of HYUNDAI MOTOR AMERICA
