[Bank 1/Intake]

  1. Disconnect the battery (-) terminal.
  2. Remove the air cleaner assembly.

    (Engine Mechanical System - "Air Cleaner")

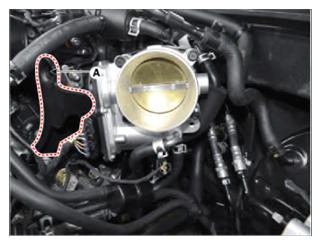

  3. Remove the engine hanger (A) after loosening the mounting bolt.
    G15477098Courtesy of HYUNDAI MOTOR AMERICA

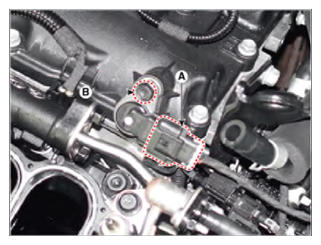

  4. Disconnect the camshaft position sensor connector (A).
  5. Remove the mounting bolt (B), and then vertically remove the sensor from the cylinder head.

    Tightening torque:

    7.8 - 8.8 N.m (0.8 - 0.9 kgf.m, 5.8 - 6.5 lb-ft)
