Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

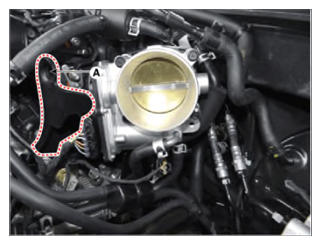

  3. Remove the engine hanger (A) after loosening the mounting bolt.
    G15477074Courtesy of HYUNDAI MOTOR AMERICA

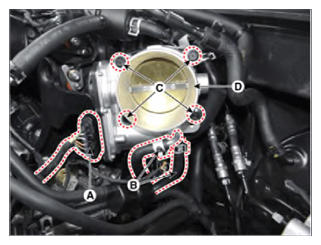

  4. Disconnect the ETC Module connector (A).
  5. Disconnect the coolant hoses (B).
  6. Remove the ETC module (D) after loosening the mounting bolts (C).

    Tightening torque:

    14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.1 lb-ft)

G15477075Courtesy of HYUNDAI MOTOR AMERICA
