Repair Procedures: Removal
- Disconnect the battery (-) terminal.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery tray.
(Refer to Engine Electrical System - "BATTERY ")

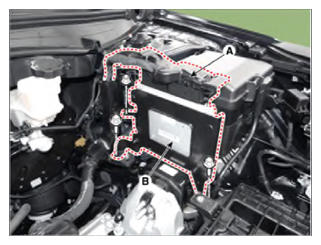

- Disconnect the ECM Connector (A).
- Remove the ECM bracket assembly (B) after loosening the mounting bolt and nuts,
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

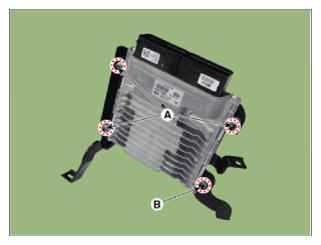

- Remove the ECM after loosening the mounting nuts (A) and screw (B).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
