Repair Procedures: Installation

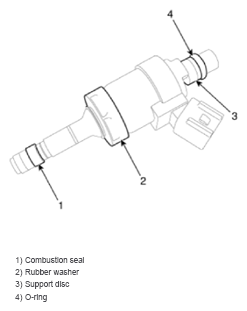

G15477142Courtesy of HYUNDAI MOTOR AMERICA
  1. Combustion seal
  2. Rubber washer
  3. Support disc
  4. O-ring
CAUTION:
  • Do not reuse the injector fixing clip.
CAUTION:
  • Install the component to the specified torque.
  • Note that internal damage may occur if the component is dropped. In this case, inspect the component before installation.
CAUTION:
  • Apply engine oil to the injector O-ring.
  • Do not reuse the injector O-ring.
CAUTION:
  • Do not reuse the bolt.
CAUTION:
  • When inserting the injector, be careful not to damage the injector tip.
CAUTION:
  • Do not reuse the support disc.
  • Do not reuse the injector rubber washer.
  • When replacing the rubber washer, the rounded edge (A) should face the cylinder installation area and the angular edge (B) should face the injector body.
    G15477143Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
  • Do not reuse the combustion seal.
  1. Install in the reverse order of removal.
